A two-day seminar is long enough to drain any laptop battery, and an auditorium where delegates queue for one wall socket during the tea break is an auditorium that has not been planned. Genya can be ordered with provision for an electric power supply, with the socket itself supplied on request, so that charging happens at the seat rather than in the corridor.
The point is to decide this early. The provision belongs to the chair as manufactured, and the cabling has to arrive at every seat before the rows are fixed. Done at the drawing stage, it costs a line on the layout; added later, it means lifting the hall.
The rest of the chair is equally considered. Dante Bonuccelli gave Genya a minimal, elegant form; the backrest is sprung, and its lumbar support adjusts itself as the seat is lowered, and the padding uses polyurethane foam in different densities that keeps its shape through a full day of sessions. Every surface the occupant touches is covered in a choice of fabric, faux leather or genuine leather.
Its primary use is as auditorium and theatre seating, but the same rows serve conference halls, institutional assembly rooms and multipurpose spaces equally well; and where the project allows, the manufacturer's Floor Technology can even fold the seats away beneath the floor. Because the socket is fitted on request, a hall can wire every seat or only the rows where delegates work on laptops.
Collection: Genya
Manufacturer: Lamm — Lamm S.r.l., San Secondo Parmense (Parma), Italy
Design: Dante Bonuccelli

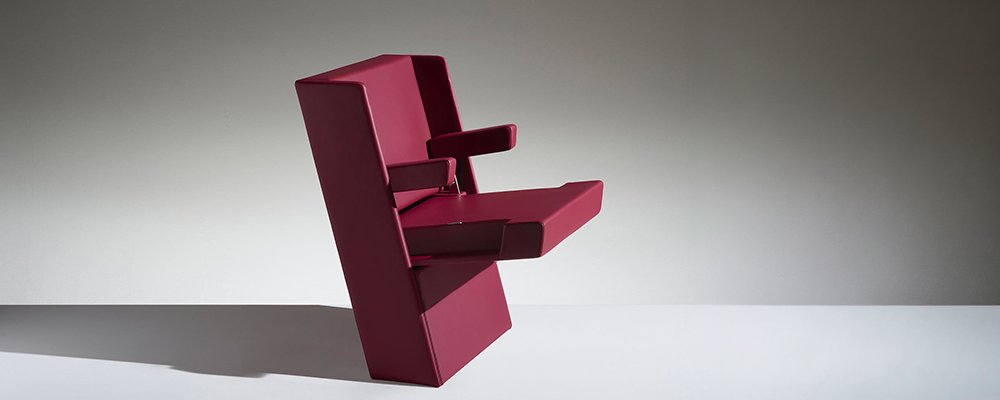

Description: armchair for conference halls, auditoriums and multipurpose spaces, with a tip-up seat and armrests that fold away automatically through a patented synchronised movement; when closed it is compact, with all components concealed within its volume
Seat, backrest and sides: plywood; non-deformable, CFC-free polyurethane foam of differential density
Backrest: reinforced elastic belt suspension; springing and lumbar support device that settles through a patented synchronised movement on opening of the seat
Movement: seat and both armrests open and close automatically and in synchrony, regulated by two cushioned gas devices
Upholstery: seat and armrests fully covered in fabric, faux leather or leather
Rear backrest (on request): painted wood or HPL laminate in oak or beech
Writing tablet (accessory): tip-up, fitted at the rear of the backrest, anti-panic movement, slow and cushioned closing (patent pending) for a controlled, safe and silent passage between use and rest; HPL top in beech, oak or black
Structure: internal load-bearing frame in painted metal with anti-rust treatment, chrome-plated visible parts, fixed directly to the floor, without any visible support
Installation: on horizontal floors, inclined floors or steps, in straight or curved rows (minimum radius 6 m); a fully upholstered central infill panel between armchairs keeps a curved row continuous and linear
Floor Technology (on project): fold-away system by the manufacturer that brings the entire seat into a horizontal position below the floor
Centre-to-centre distance: 58 cm or 60 cm; end panels 32 cm (with 58 cm) or 33 cm (with 60 cm)
Distance between rows: 90 cm; free passage with seat closed 44.5 cm; curved rows minimum 90 cm apart
Overall height: 88 cm · seat height: 49 cm
Depth: 76 cm open · 22.5 cm closed
With writing tablet: depth 102 cm open · 46.5 cm closed · tablet top at 70 cm from the floor
Covering options: ten, in four categories — category 1: Inca, King, Trevi CS · category 2: Silvertex, Extrema Au · category 3: Luna CS, Revive 1 and Remix 2 (Kvadrat) · category 4: Steelcut Trio 3 (Kvadrat), leather
HPL laminates: rear backrest in beech or oak · writing tablet in beech, oak or black
Painted wood rear backrest: beech or oak
Accessories: writing tablet · painted wood rear backrest · provision in the base for an aeration system with painted metal grille (paints on request) · provision for an integrated monitor/audio system in the backrest · provision for electric power supply (socket on request) · seat numbering · row identification element
Padding certification: CertiPUR®
Wooden parts: low formaldehyde emission
Recognitions: Good Design Award 2009 · Best of NeoCon 2009 · Honourable Mention at the XXII Compasso d'Oro ADI
Testing: tested according to European standards (Lamm publishes no standard numbers)
Share the finishes you wish to evaluate
On horizontal floors, on inclined floors or on steps, in straight rows or in curves with a minimum radius of 6 m. Because the frame is anchored to the surface itself, the floor type has to be known before the layout is frozen.
Yes, as an accessory: a tip-up tablet fitted at the rear of the backrest, for the occupant of the row behind. It features an anti-panic mechanism and closes gently, damped and slowed (patent pending), returning to rest without a sound.
The base of Genya is prepared to receive an aeration system, finished with a painted metal grille; the grille colour can be specified on request. Whether to use it is a decision for the hall's HVAC consultant, taken with the seating layout.
The end panel measures 32 cm with the 58 cm centre-to-centre and 33 cm with the 60 cm option. Adding it to the seat count gives the true length of each row on the drawing.
Yes. Genya offers seat numbering as well as a separate row identification element, useful for ceremonies, convocations and any event with allotted places. We fix the sequence with you before installation.
The ordering procedure for Genya upholstery: shortlist by category, request the physical sample, test it in the hall, match the rear panel and tablet, and freeze the code in the purchase order.
Genya is offered in ten covers grouped into four categories, from the first category (Inca, King, Trevi CS) up to Steelcut Trio 3 and leather. Agree the category with the client first; colour comes afterwards.
Screens misrepresent texture and shade. We arrange the actual sample, and its cost is fully adjusted against the order once confirmed.
Place the sample on a seat and view it under the stage and house lights that will be used during events, not only under daylight from a window.
If the rows will have a rear backrest or the writing tablet, choose their finish at the same sitting: oak or beech for the rear panel, beech, oak or black HPL for the tablet.
Record the approved collection and colour code in the purchase order, row by row. That code, not a description, is what will be checked on delivery.
