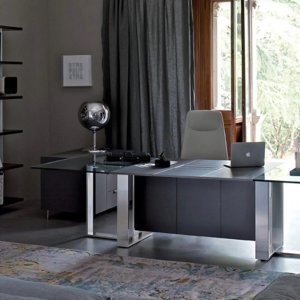

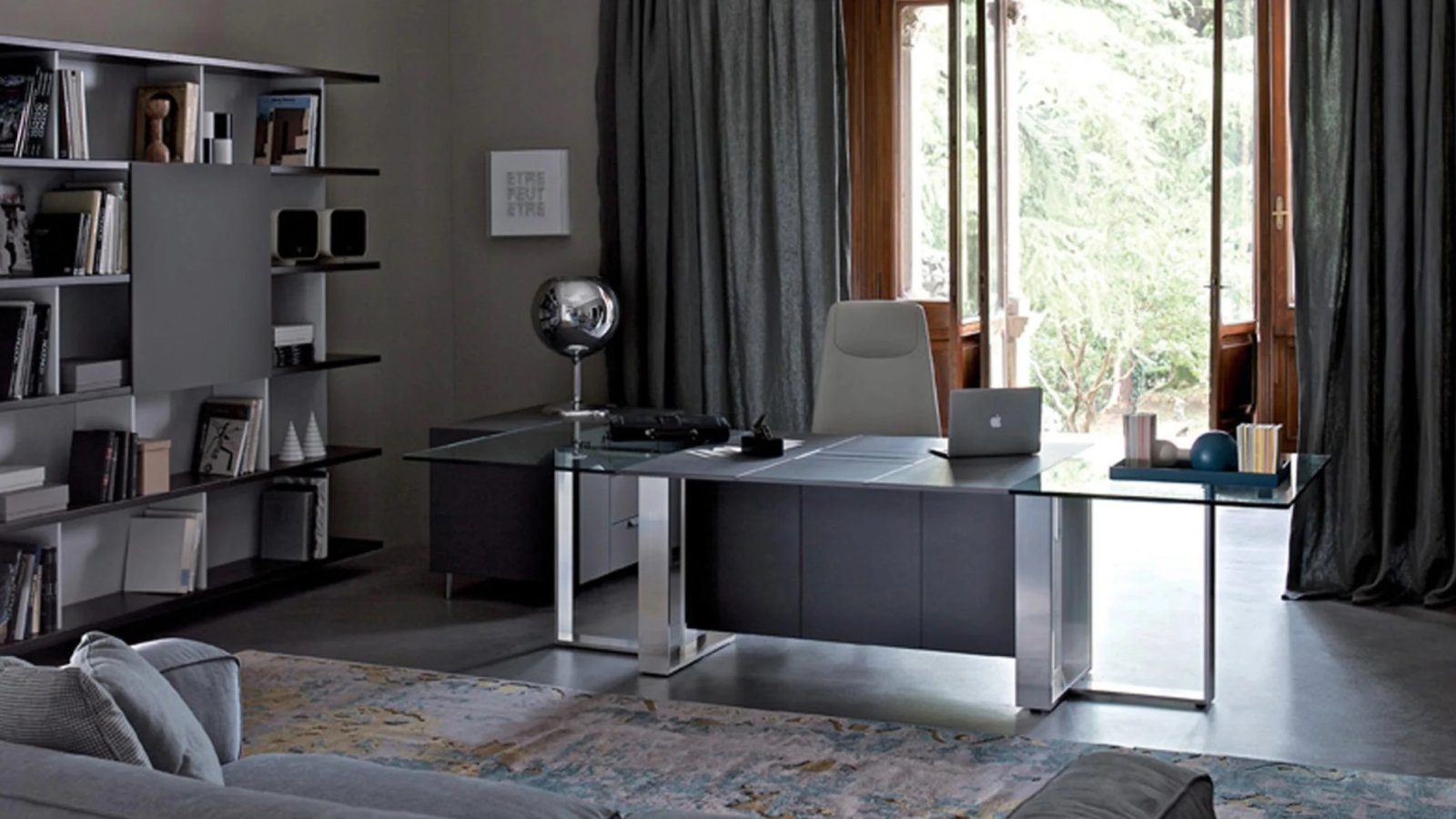

Altagamma by Estel in veneer with the recessed top access and the aluminium frame legs

Storage from 100 to 320 cm, with a glazed centre on the long ones: the wall behind the Altagamma desk

Estel

Let's discuss your project

Trade terms for professionals and design studios

The storage of Altagamma is ordered by length. Estel files four units of one height, 87 cm, and one depth, 46: 100, 150, 180 and 200 cm long, in veneer, Ecopelle Time or Pelle Soft. Then three compositions, in veneer only: 220 cm from two 50 modules and one of 120, 240 from two 60 and one of 120, 320 from one 120 and two 100, each with a glazed central top.

In front of that wall stands the desk, drawn in-house by Estel R&D and filed among designer office tables without an outside name. Its legs are aluminium, 11 cm in profile and 15 mm thick, and Estel finishes the frame they form three ways: steel-anodised aluminium, a matt bronze, a pewter quartz. Between them runs the modesty panel, 11 cm deep, which houses the wiring compartment of an executive cabin desk.

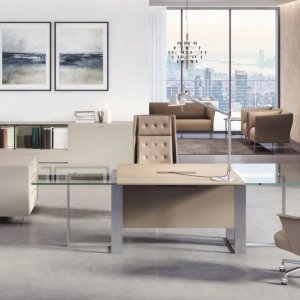

Read the tops by material. Veneer first: the fixed desk at 75 cm in 180 × 90, 210 × 100 and 240 × 100, the version with the 210 × 170 service unit, the Altagamma Life whose top rises from 75 to 125 cm. Leather and Ecopelle Time next, on the same desks and on the 240 or 280 meeting desk with a leather centre. Glass last: a clear 15 mm top on the 180 and 210 desks and on the meeting tables.

La Mercanti lists the storage wall of an Altagamma cabin module by module on the quotation, so the glazed centre is never a surprise on site.

Technical information based on data declared by the manufacturer.

Collection: Altagamma, Executive & Meeting chapter of the Executive & Common Area catalogue: executive desks, meeting desks, meeting tables and cabinets
Manufacturer: Estel Group, Thiene (Vicenza), Italy
Design: Estel R&D
What it is: executive desk on an aluminium frame base with a modesty panel fitted for cables; fixed version H 75 and Sit&Stand version from 75 to 125 cm
Base: aluminium legs with an 11 cm profile and a 15 mm section; finishes steel-anodised aluminium, matt bronze, pewter quartz
Modesty panel: 11 cm thick, in the same finish as the top; houses the wiring compartment; in veneer on the service-unit, Life and glass versions

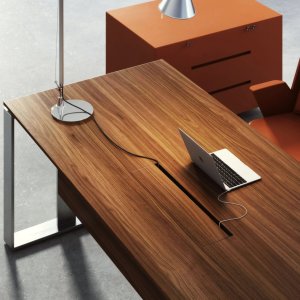

Tops: 30 mm MDF panel faced in veneer, Ecopelle Time or Pelle Soft; 15 mm clear glass; Life tops 50 mm
Veneers: Eucalipto Naturale, Eucalipto Scuro, Noce Canaletto, Rovere Dark, Rovere Naturale (Estel sample range)
Pelle Soft: 24 named colours, from Bianco to Nero
Ecopelle Time: 24 coded variants
Fixed desk: 180 × 90, 210 × 100, 240 × 100 cm, H 75; GAA54, GAA51, GAA52; in glass 180 × 90 and 210 × 100, GAZ94 and GAZ91

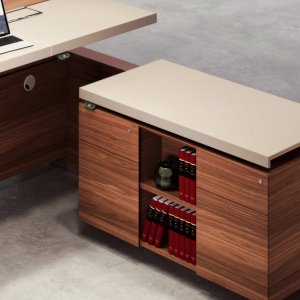

Desk with service unit: 210 × 170 × 75 cm, GAZ00 and GAZ04, right or left; top 210 × 90, unit 190 × 50 and 57 high; modesty panel, side panels and unit in veneer
Sit&Stand with service unit: same top and unit as the fixed version, height-adjustable like the Life, GAZ10 and GAZ14
Life version: 210 or 240 × 100 cm, top rising from 75 to 125, GAA70 to GAA92, right or left, top access always included; with fixed 120 × 60 return: 210 or 240 × 220, GAA75 to GAA78; rising return 75 to 125 as an option declared in the catalogue
Meeting desk: 240 and 280 × 120 × 75 cm with centre in veneer, ecoleather or leather and glass sides, GAZ20 and GAZ22; all glass GAZ80 and GAZ82; Pelle Soft with veneer sides 240, 280 and 300, GAZ26 to GAZ30
Meeting tables: round Ø 130 and 150; square 160 × 160; rectangular 320 and 360 × 120, 420, 480 and 600 × 140; octagonal 600 × 120/140; H 75; glass, veneer, ecoleather, leather and combinations

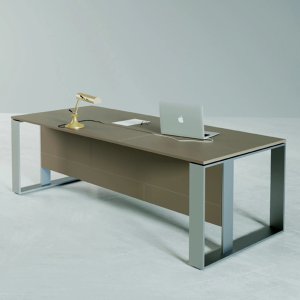

Power and data: double-sided or frame top access, in leather or wood; glass cannot be wired with a top access; cable hole standard on veneer, ecoleather and leather tables; modules Tipo 1 GC030 (3 Schuko + 2 RJ45 cat. 6), Tipo 2 GC032 (3 Schuko + 2 RJ45 + 2 USB 5 V), Tipo 3 GC034 (3 Schuko + 2 RJ45 + HDMI + USB), Tipo 4 GC036 (3 Schuko + 2 USB 5 V), black, 38 or 45 × 6 × 4/4.5 cm, 220 V connector with interlock; Tipo 2 and 3 not for the service unit; cable GC090 H05 VV-F 2.8 m with Schuko plug and GST 18-3 socket; international standards on request
Cabinets of the collection: family worked at 45°: drawer units 66 × 47 × 58 with three drawers or with drawer and filing drawer on a fifth castor, recessed handle in brushed steel; service units L 74, 102 and 122, 68 × 66, on feet or castors; H 87 cabinets L 100, 150, 180 and 200 and compositions 220, 240 and 320 with glazed central top; fridge can be fitted in L 180 and L 240
Veneer care: dry cloth; neutral detergent on a barely damp cloth; never microfibre, acids or alkalis; silicone-free polish once a year at most
Leather and ecoleather care: Pelle Soft never with water or detergents, soft dry cloth, soft brush or low-power vacuum; Ecopelle Time with liquid soap and warm water, cold rinse; sanitiser recommended by Estel Care
Glass and aluminium care: glass with a damp cloth or a glass cleaner, alcohol-based sanitisers, limited load; anodised aluminium with neutral detergent, never acids or lemon juice, 70% alcohol to sanitise
Recommended room: 18-23 °C, relative humidity 45-60%, at least 10 mm from the wall
Files available: technical data from the price list, Executive & Common Area catalogue, Product Care
In the catalogue settings: Embrasse Office seating, Dolly sofa and armchairs, Libra bookcase, Deck units, E-Wall wall units

La Mercanti Srl — trusted supplier for design and contract projects since 1997.
San Benedetto del Tronto (AP), Italy · +39 0735 753833 · info@lamercanti.com
Supply, quotations, specifications and project support across India and worldwide.

Documents and Catalogues

Estel Executive Office Catalogue Estel Care and Cleaning

Share the finishes you wish to evaluate

₹ 30,000

Amount adjusted against your first order

FAQ

What is inside the 11 cm modesty panel, and why is it that thick?

Cables, and the room to route them. The panel that links the two legs of Altagamma is 11 cm thick and houses the compartment for the wiring; Estel's price list says it can hold a large quantity of cables, which the user reaches from above through the top access. It is finished like the top, in veneer, Ecopelle Time or Pelle Soft.

Will a dry cloth be enough for the veneer, or does it need a product?

A dry cloth, for most days. Estel's Product Care puts dirt and liquids on the veneer under one rule: wipe with a dry cloth, and for heavier soiling use a neutral water-based detergent on a cloth that is only slightly damp, then rub again once the surface is dry. The list of what not to use is short and firm: no acidic or alkaline products, and no microfibre cloths on the wood. A silicone-free furniture polish is allowed, not more than once a year, tried first where it will not show. Hot or wet objects and sharp edges are what the manual names as damage.

Which other Estel pieces sit next to the desk in the catalogue photographs?

Five names, all from the Estel range and all declared in the captions. Embrasse Office seats on castors appear beside the meeting desk and the Life; a Dolly sofa and armchairs furnish the sitting corner; the Libra bookcase stands behind the Sit&Stand with service unit; Deck units and E-Wall wall units frame the Life. The captions also name two finishes on the photographed desks: walnut veneer on the Life with a matt bronze base, and black-stained oak on the Sit&Stand with a pewter quartz base. Nothing else in those rooms is named by Estel.

How far does the Sit&Stand top travel, and how do you know where it is?

From 75 to 125 cm, the figures printed in Estel's price list for the Sit&Stand desk and for the Altagamma Life. The catalogue describes the control as a digitised lifting mechanism with a push button and a progressive display of the movement, up and down, so the height is read on the panel rather than guessed. Estel ties the version to the well-known ergonomic prescription of alternating a seated and a standing posture during the working day.

What exactly do the 210 × 170 cm of the service-unit version measure?

The whole footprint, not the top. On the drawing the desk top is 210 × 90 cm, the service unit set at right angles is 190 × 50 and 57 cm high, and the two together occupy 210 × 170, with 20 cm of top passing beyond the unit. The code fixes the side: GAZ00 right, GAZ04 left, and the same choice returns on the Sit&Stand version, GAZ10 and GAZ14. Modesty panel, side panels and the unit itself come in veneer only, whatever the top is made of.

Ordering Altagamma by Estel's GA codes, from configuration to socket module

Estel's price list spells every Altagamma choice as a code. Five steps put the configuration, the top, the frame, the side and the power module on one order line each, in the manufacturer's own language.

Pick the configuration code

Start from what the desk has to be. Altagamma at a fixed 75 cm is GAA54, GAA51 or GAA52 for 180 × 90, 210 × 100 and 240 × 100; the same desk in glass is GAZ94 or GAZ91 for 180 and 210. With a service unit the code becomes GAZ00 or GAZ04; the Sit&Stand with unit is GAZ10 or GAZ14; the Life runs from GAA70 to GAA92, and from GAA75 to GAA78 when the fixed 120 × 60 return is wanted.

Name the top and modesty

The top finish is written next to the code: Essenza, Ecopelle Time, Pelle Soft or clear glass. The modesty panel follows the top in the same finish, except on the two versions where the price list admits veneer only, the desk with service unit and the Life; under a glass top the panel is in Essenza, Ecopelle Time or Pelle Soft, and that finish goes on the order too.

Choose the frame finish

Steel-anodised aluminium is the frame finish printed in the tables; matt bronze and pewter quartz are the two alternatives Estel lists for the base. The word goes on the order next to the configuration code; the price list prints the bronze and pewter options in a column of their own.

Fix the side and top access

Where a unit or a return is involved the code already carries the side: right for GAZ00, GAZ10, GAA70, GAA72, GAA75 and GAA76; left for GAZ04, GAZ14, GAA90, GAA92, GAA77 and GAA78. Then the top access: double-sided or frame type, with the lid in leather or in wood, for every top except glass, which the price list excludes from wiring. On the Life the top access is always included.

Add module and cable

Four black modules close the order: Tipo 1 GC030 with three Schuko and two RJ45 cat. 6, Tipo 2 GC032 adding two 5 V USB chargers, Tipo 3 GC034 with an HDMI and a USB coupler, Tipo 4 GC036 with three Schuko and two USB. Tipo 2 and Tipo 3 are not available for the service unit. Cable GC090, 2.8 m, Schuko plug to GST 18-3 socket, on its own line; international standards on request.
