The opening you specify: Toa by Pedrali, conference table with the SPEC cut-out, design Robin Rizzini

Pedrali

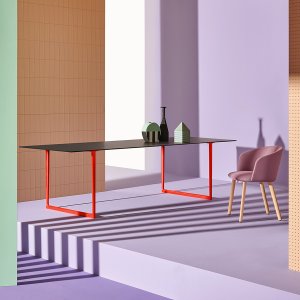

Most conference tables are cut for the manufacturer's own cable box. Toa has a third option Pedrali calls SPEC: an opening of 420 × 112 mm cut to order for the top-access unit the client already owns — the integrator's module with the HDMI, the power and the network sockets that the boardroom AV team has chosen for every other room in the building. You send the drawing of the unit, the top arrives cut for it, and the module drops in flush. It is offered on the 300 and 360 tables and on both two-piece conference sizes, beside the two standard cut-outs, the 60 mm CC60 slot and the CCO box with its cover in the top material.

Under the top is the leg Robin Rizzini designed: a bridge in cast aluminium, narrow at the floor and widening into a T where the load is, tied to its twin by extruded beams. That leg is what the rest of the range has in common: seven plain tables between 190 × 75 and 360 × 125 cm, boardroom tops of 519 and 610 cm, the 240 × 90 desk with its slot to one side, workstations of two or four stations behind sound-absorbing dividers, an outdoor version on exterior laminates, and a Toa Folding Screen that stands on the top and bends into whichever of its three letters the desk needs, U, S or L. La Mercanti asks every Indian client for the AV module's cut-out drawing together with the order, so the SPEC opening is confirmed before the top is machined in Italy.

Technical information based on data declared by the manufacturer.

Collection: Toa, design Robin Rizzini
Manufacturer: Pedrali, Italy
Frame: tapered die-cast aluminium bridge legs with a T element under the top; extruded aluminium connecting beams
Frame finishes: powder coated for indoor use in 14 codes (AZ100, BL300, BL500, VE100, NP, VE600, GA, BI200, AR500, GI100, RA100, TE, RO200, RO300); polished aluminium LU; titanium TN; the same 14 codes with an E suffix for outdoor use
Top: solid laminate 10 mm (FNP_NE black core anti-fingerprint; FNP_3452 and FNP 0719/0791/0789/0792/0773 matching core anti-fingerprint; COP 4512/4543 brown core; COP 1952/4529 black core) or 12 mm (CFP_BI white core; FMP_NE plywood core anti-fingerprint); veneered RS 25 mm on the 240 × 90 only
Outdoor tops: solid laminate CFC_BI, COP 4529 and 1952, CFP 3445 and 3447 matching core, COP 3471 beige core, COP 3467 grey core

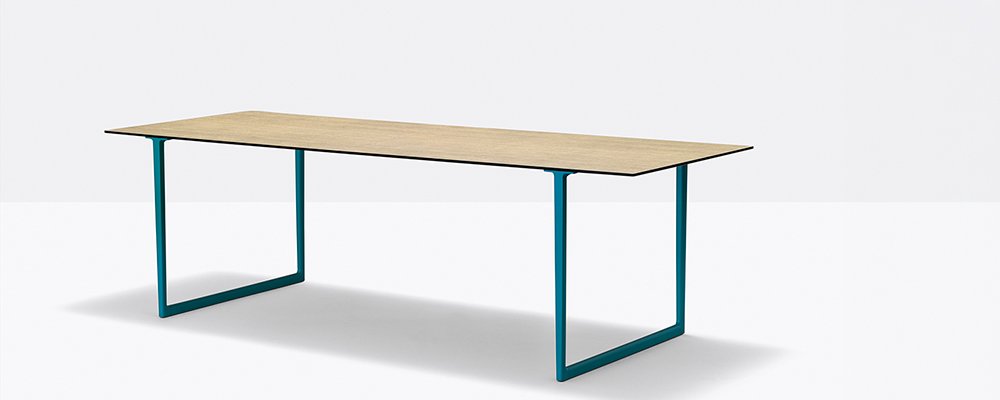

Toa table: 190 × 75, 190 × 90, 240 × 90, 300 × 100, 300 × 125, 360 × 100 and 360 × 125 cm; height 73 cm with the 10 mm top; from 37.5 kg (190 × 75, 10 mm) to 102 kg (360 × 125, 12 mm); clearance between the legs 130 cm on the 190, 180 on the 240 and 300, 240 on the 360
Cable management on the 300 and 360: CC60 slot with a 60 mm channel, 100 cm long on the 300 and 140 cm on the 360; CCO cut-out 60 × 13.2 cm with a black steel tray and a cover in the same material as the top; SPEC opening 42 × 11.2 cm customised on request for the client's top-access unit
Toa desk: 240 × 90 cm CDX or CSX, 30 × 8.2 cm slot set right or left at 38 cm from the edge, with a 170 cm steel tray powder coated red RO400 and a cover in the top material; 54 kg with the 10 mm top, 61 kg with 12 mm; declared by Pedrali for light offices, executive rooms and the home

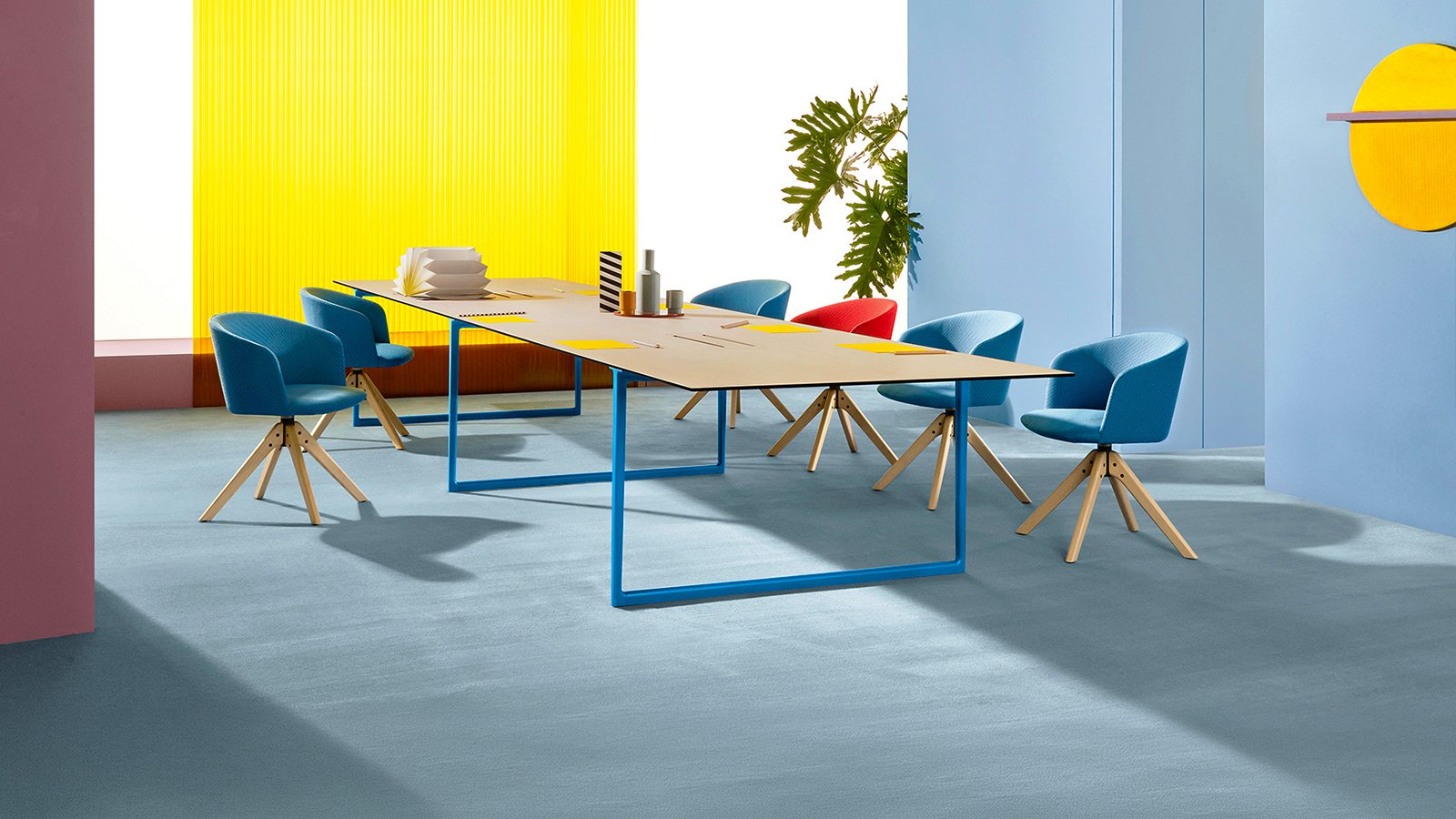

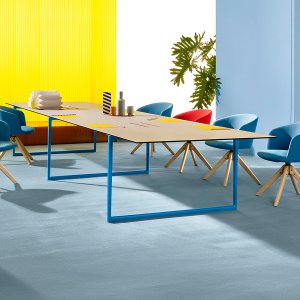

Toa conference: TOA2 519 × 125 cm (140 kg with 10 mm, 160 with 12) and 610 × 130 cm (182 and 207 kg), two-piece top with CC60, CCO or SPEC; frame in 8 powder-coated codes (BI100, BE100, GA, NERO, AR400, BL300, BL500, VE600), polished LU or titanium TN

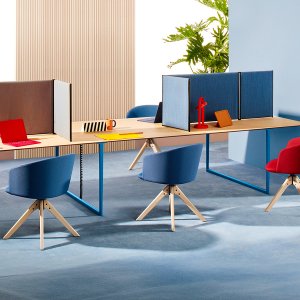

Toa workstation: TOA3S 159 × 150 cm for two stations (61 and 68.5 kg) and 300 × 150 cm for four (110 and 124 kg); DSP_L130 sound-absorbing panels 130 × 45.5 cm and DSP/2_L130 130 × 61.5 cm, steel frame, padded and fabric covered
Toa Folding Screen TFS: desktop acoustic panel 100 × 49 × 56 cm, 8.2 kg; welded steel frame powder coated NEF, heat-bonded padding, fabric cover removable with a zip; U, S and L configurations; fabric categories C, D, G and H with the exclusions printed in the price list
Feet: polypropylene on the table and conference; black technopolymer on the desk and workstation
Packaging: disassembled, one package; from 0.275 m³ (190 × 75) to 0.69 m³ (360 × 125); desk 0.455 m³; workstation 0.57 and 0.73 m³; conference 1.01 to 1.21 m³; 100% FSC recycled cardboard and bags with at least 35% recycled content
Strength tests: EN 15372:2016 (5.1, 5.2 and 6, level L3) and EN 1730:2012 (6.2, 6.3, 6.4.2, 6.6, 6.9 and 7.2), declared by Pedrali on the table spec sheet
Environment: die-cast aluminium with 94% recycled content at origin, extruded aluminium 80%, steel 27%; recyclable at end of life 23.5% on the 360 × 125, 38.2% on the desk, 37.1% on the workstation, 33.9% on the 610 conference, 90.7% on the Folding Screen
Warranty: 24 months on manufacturing flaws and defects, declared by Pedrali
Company certifications: ISO 9001, ISO 14001, ISO 45001, ISO 14064-1 held by Pedrali

La Mercanti Srl — trusted supplier for design and contract projects since 1997.

San Benedetto del Tronto (AP), Italy · +39 0735 753833 · info@lamercanti.com

Supply, quotations, specifications and project support across India and worldwide.

FAQ

Which Toa tops are anti-fingerprint?

The codes beginning with F: FNP_NE with a black core, FNP_3452 and the five FNP decors 0719, 0791, 0789, 0792 and 0773 with a matching core, all 10 mm, and the 12 mm FMP_NE with a plywood core. The CFP and COP laminates are not marked anti-fingerprint on the spec sheet.

What is inside the CCO cut-out?

A black powder-coated steel tray under a 60 × 13.2 cm opening, closed by a cover cut from the same laminate as the Toa top. Cables drop from the sockets into the tray and run to the leg; with the cover down the opening reads as a seam in the top.

Is there a wood version of Toa?

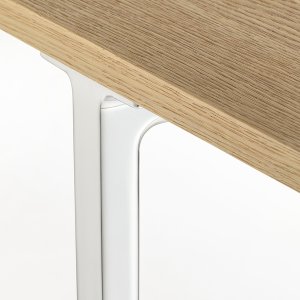

One: the 240 × 90 table can be ordered with a 25 mm veneered top, code RS, at 55 kg. Every other Toa size and every conference, desk and workstation version comes in solid laminate only.

How many people work at the Toa workstation?

Pedrali counts stations: two on the 159 × 150 cm and four on the 300 × 150 cm, face to face across a 150 cm deep top, with DSP dividers of 45.5 or 61.5 cm in height between them. The frame is the same bridge leg as the Toa meeting table.

What is the packaging made of?

Cardboard that is 100% recycled and FSC certified, with plastic bags containing at least 35% recycled material, as Pedrali declares on the Toa spec sheets. The table travels disassembled in a single package, whatever the size.

How to receive Toa in a building that is already working

Five steps to bring a Toa conference table into an occupied office floor without stopping the floor: the crate, the lift, the room and the top.

Book the goods lift for the crate, not the table

Toa ships in one package, up to 1.21 m³ and 207 kg for the 610 conference; give the building the crate size and weight, and the lift slot follows.

Choose the hour from the corridor

The Toa top crosses the floor face down on its cardboard; pick a time when the corridor to the room is empty, before the day starts or after it ends.

Unpack inside the meeting room

Open the Toa crate in the room it will live in. The legs, the beams and the cable tray come out first; the top stays on the packing until the frame is bolted.

Assemble with the door closed

Two people fit the Toa bridge legs and beams, turn the table over onto its feet and set the cable cover or the SPEC module in the opening. Nothing leaves the room but the cardboard.

Hand over with the order line

La Mercanti's team checks the Toa against the order line — size, top code, cable option, frame finish — and photographs the top before the room is used, so the handover and the warranty start from the same date.
