Sculpted Bas-Relief porcelain feature wall by Mutina

Bas-Relief by Mutina — a sculpted wall that housekeeping will love

Mutina

Patricia Urquiola

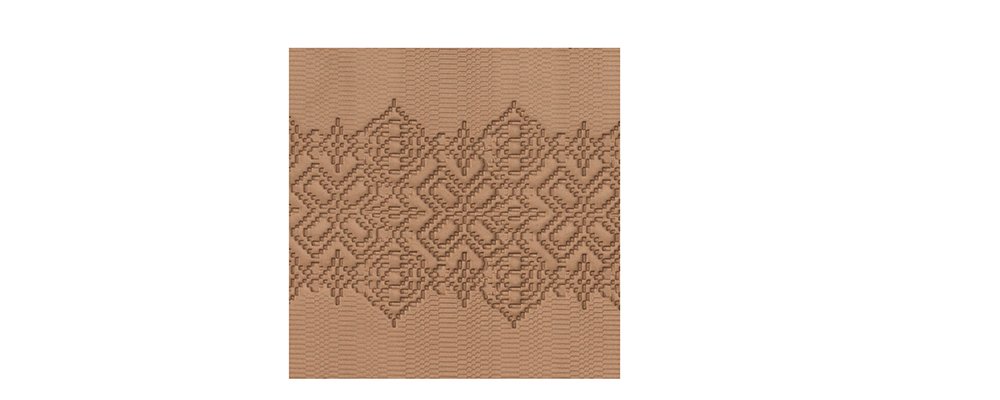

Garland Cipria
Garland Cipria An icon of Italian design
₹ 110.521

What did you have in mind?

Trade terms for professionals and design studios

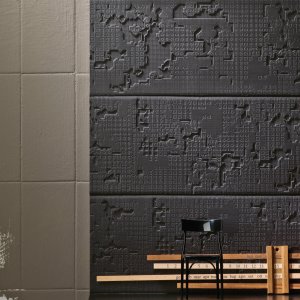

Indian projects know the cost of drama: carved stone feature walls that gather dust in every groove, plaster reliefs that stain at the first monsoon. Bas-Relief delivers the sculpture without the penance — a relief carved in porcelain, unglazed, colour through the body, with declared numbers that read like a facilities wishlist: stain resistance class 5, water absorption 0.07%, chemical resistance, deep abrasion 274.4 mm³. The texture catches light, not dirt: cleaning is a neutral detergent and a sponge that follows the relief.

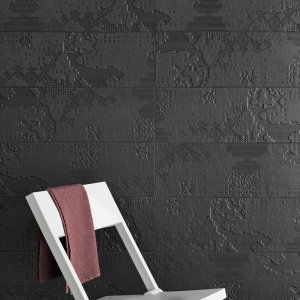

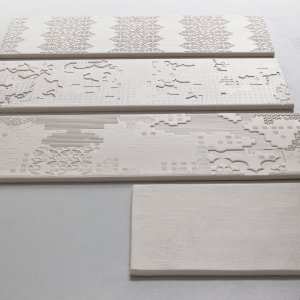

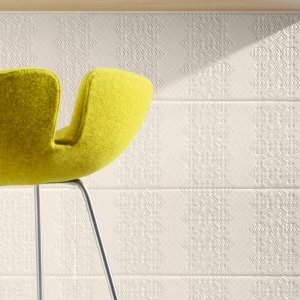

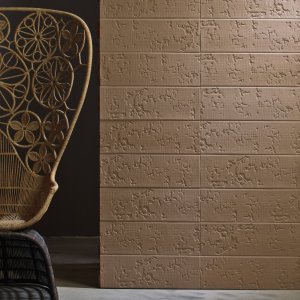

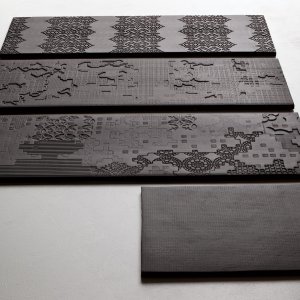

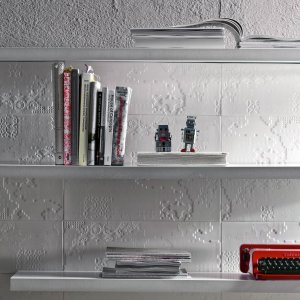

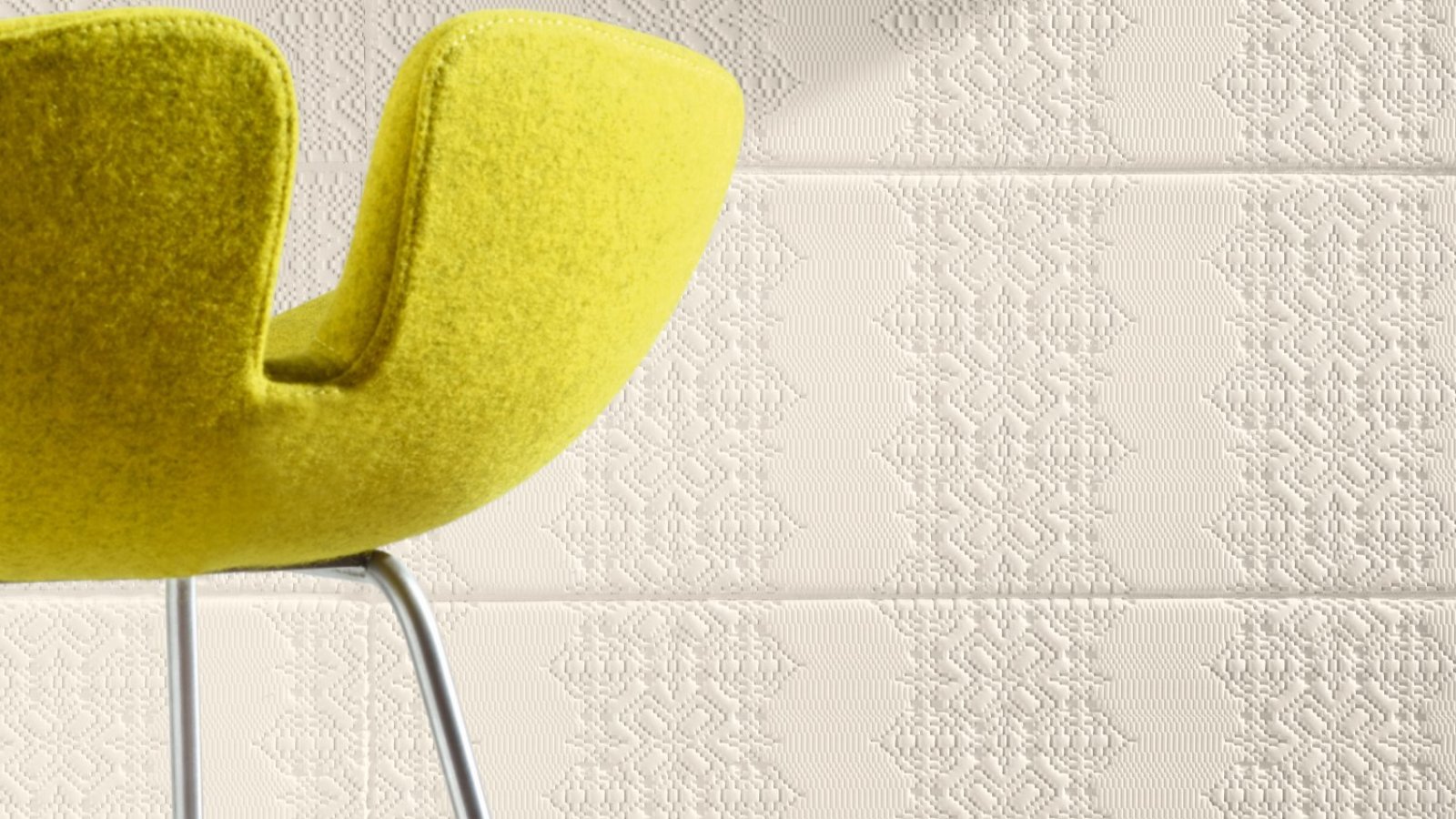

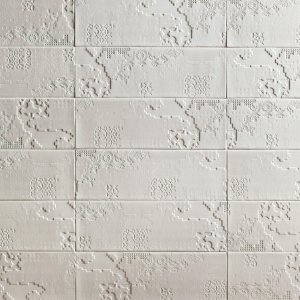

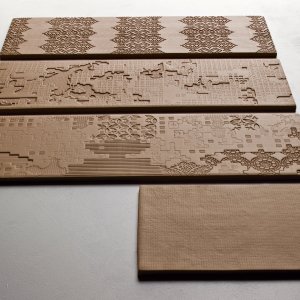

Patricia Urquiola designed it for Mutina in 2010 as a continuation of Déchirer — relief and incision with a more austere hand. The production is genuinely artisanal: clays extruded and cut by hand, ±2 mm declared tolerance, each piece protected by a peel-off silicone film. Four textures in Bianco, Cipria and Nero: Code, cipher-like and severe; Patchwork, overlapping and never repeating; Garland, a digital floral; Cloud, air bubbles fixed in abstraction. Two registered designs since 2011.

Where it earns its keep

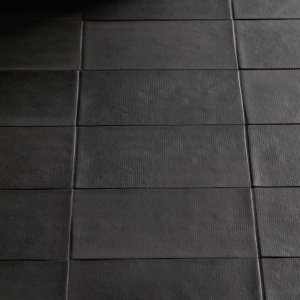

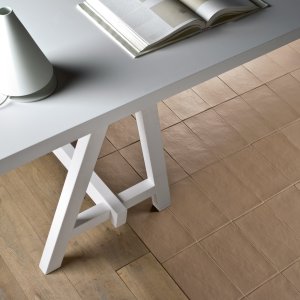

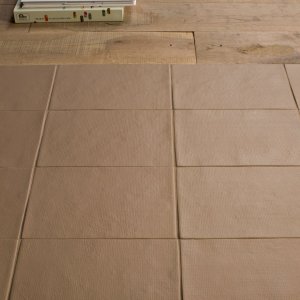

Walls indoors and out — lobby fronts, boardroom accents, washrooms, shaded verandah walls; Code (26.5×18) alone also floors, with R11 and DCOF 0.56 declared. Datasheet and certificates download from this page.

Technical information based on data declared by the manufacturer.

Collection: Bas-Relief
Manufacturer: Mutina
Design: Patricia Urquiola, 2010
Material: artisanally extruded unglazed porcelain, hand-cut, UNI EN 14411 App A (AI) UGL
Formats: Patchwork, Garland, Cloud 18×54 cm (walls only) — Code 26.5×18 cm (walls and floors) — 9 mm — ±2 mm tolerance
Tones: Bianco, Cipria, Nero (12 references)
Registered designs: two, filed 2011
Use: wall cladding indoor and outdoor; Code also flooring
Declared values: absorption 0.07% — stain class 5 — deep abrasion 274.4 mm³ — R11 — DCOF 0.56 — frost, thermal-shock and chemical resistant
Documents: HPD and VOC data on request
Installation: slow-setting adhesive, 2 mm joints with wedges, silicone film removed after grouting — Packing: 18×54: 10 pcs/box; 26.5×18: 20 pcs/box

La Mercanti Srl — trusted supplier for design and contract projects since 1997.
San Benedetto del Tronto (AP), Italy · +39 0735 753833 · info@lamercanti.com
Supply, quotations, specifications and project support across India and worldwide.

Documents and Catalogues

Bas-Relief Catalogue Mutina Catalogue Bas-Relief Certifications Bas-Relief Technical Guide, Laying & Maintenance Bas-Relief CAD & 3D Files

Share the finishes you wish to evaluate

₹ 30.000

Amount adjusted against your first order

FAQ

A carved surface in Indian dust and humidity - is that not asking for trouble?
The material answers both worries. Dust: the relief is porcelain, not plaster - cleaning is a neutral detergent and a sponge that rides the carving, with stain resistance declared at class 5, the top of the scale. Humidity: absorption is 0.07% against the 3% its norm group allows, with chemical resistance declared. The drama sits in the shadow play, not in the maintenance schedule.
Which texture goes on floors, and what are the slip numbers?
Only Code, the 26.5x18 base: declared for floors and walls with R11 and DCOF 0.56 against the 0.42 threshold. Patchwork, Garland and Cloud are declared wall claddings - their deep relief is sculpture, not a walking surface. The intended pairing: Code underfoot, one carved texture as the feature wall behind reception or in the washroom.
What makes this different from the 3D wall panels available locally?
Three documented facts: it is unglazed porcelain with colour through the body, extruded and cut by hand with the tolerance declared on the datasheet; the relief drawings are protected by two registered designs filed in 2011; and it carries Urquiola's signature within Mutina's collection - a provenance a pressed panel cannot claim. For clients who ask what they are paying for, the answer is on paper.
How demanding is the installation for a local contractor?
Demanding of order, not of exotic skill - and the datasheet spells out every step: slow-setting porcelain adhesive so pieces can be adjusted, 2 mm joints on spacer wedges to absorb the hand-made tolerance, tiles mixed from several boxes, and the silicone film left on until grouting is finished, then peeled and sponged. Brief the team once and the wall builds itself.
Can it face the outdoors - verandahs, entrance courts?
Yes by declaration: all four textures are indoor-outdoor wall claddings, resistant to thermal shock (ISO 10545/9) and frost (ISO 10545/12), at 0.07% absorption. HPD and VOC documentation is available through La Mercanti for green-building submissions, and sample costs are fully credited at order confirmation.

Sculpture on the BOQ: Bas-Relief in five steps

Five steps for Indian architects and admin heads: Urquiola's carved porcelain from the lobby to the verandah, with housekeeping numbers attached.

Give each zone one carved wall

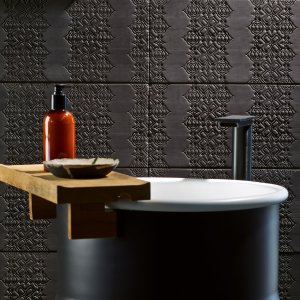

Lobby front, boardroom accent, washroom feature: one sculpted surface per zone. Plain surfaces and Code floors carry the rest.
Match texture to room character
Code for severity, Patchwork for movement, Garland for warmth, Cloud for lightness - all in Bianco, Cipria or Nero.
Put the numbers in the BOQ
Stain class 5, absorption 0.07%, abrasion 274.4 mm3, R11 with DCOF 0.56 for Code floors - declared values from the datasheet on this page.
Sequence the install properly
Slow-set adhesive, 2 mm joints on wedges, mixed boxes, silicone film off after grouting - write it into the contractor scope.
Order by format and box yield
Walls 18x54 at 10 pcs per box, floors Code at 20 pcs per box: La Mercanti computes quantities, spares and delivery with your contractor.
