The oval Asymmetrical Meeting stands on one cylinder, and Tecno treats that cylinder as an engineering problem rather than a base. The Ø300 table weighs 540 kg and the whole of it bears on about one square metre of floor; the price list therefore gives the project team a choice. Either the table is anchored with the eight bolts supplied, SLM 10 × 60, into R250 reinforced concrete to a depth of no more than 8 cm; or, where drilling is not possible, a stabilizer is ordered separately, a set of shaped plates adding 110 kg of ballast inside the base. Tecno adds the sentence a structural engineer wants to read: the load the slab can carry per square metre must be at least the weight of the table plus the stabilizer. For a boardroom on the fourteenth floor of a Mumbai tower that is the first line of the specification, not the last.
The rest of the family is lighter on the floor because it stands on two feet. The rectangular tables, 380 × 160, 450 × 180 and 550 × 200 cm, rest their 7.5 cm top on two bases of different length and width; the round tables, Ø160 and Ø180, carry one solid top without any metal frame beneath it; every version stands 75 cm high, rectangulars and ovals also at 67. Fourteen lacquer colours or ten veneers for the top, lacquered bases matched or contrasted, and the executive desk, side cabinet included, drawn from the same hand. In India La Mercanti asks for the slab data before quoting an oval Asymmetrical Meeting, so that bolts or ballast is decided on paper and not on the day of installation.
Collection: Asymmetrical Meeting, design Piero Lissoni, 2006
Manufacturer: Tecno, Italy

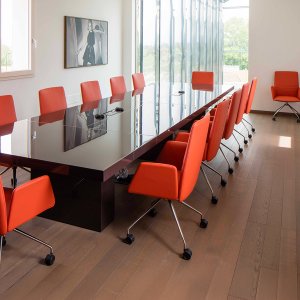

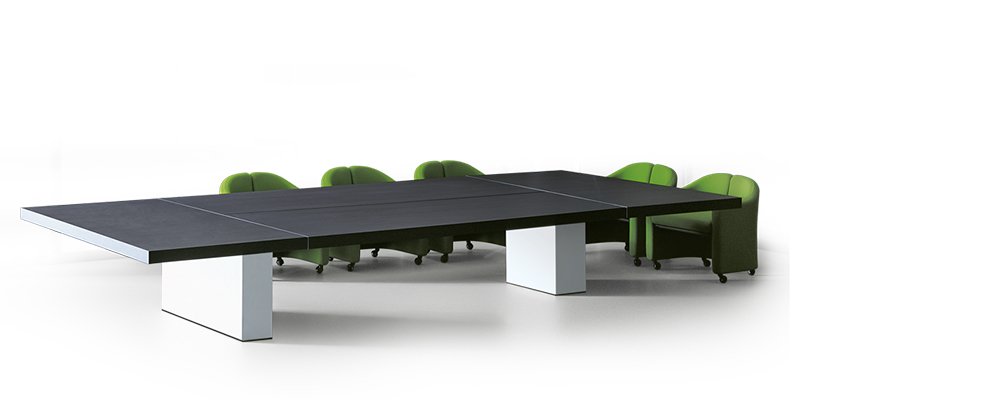

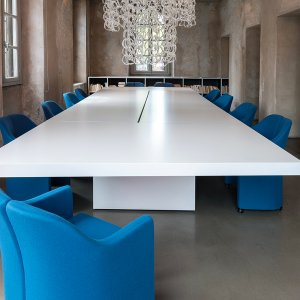

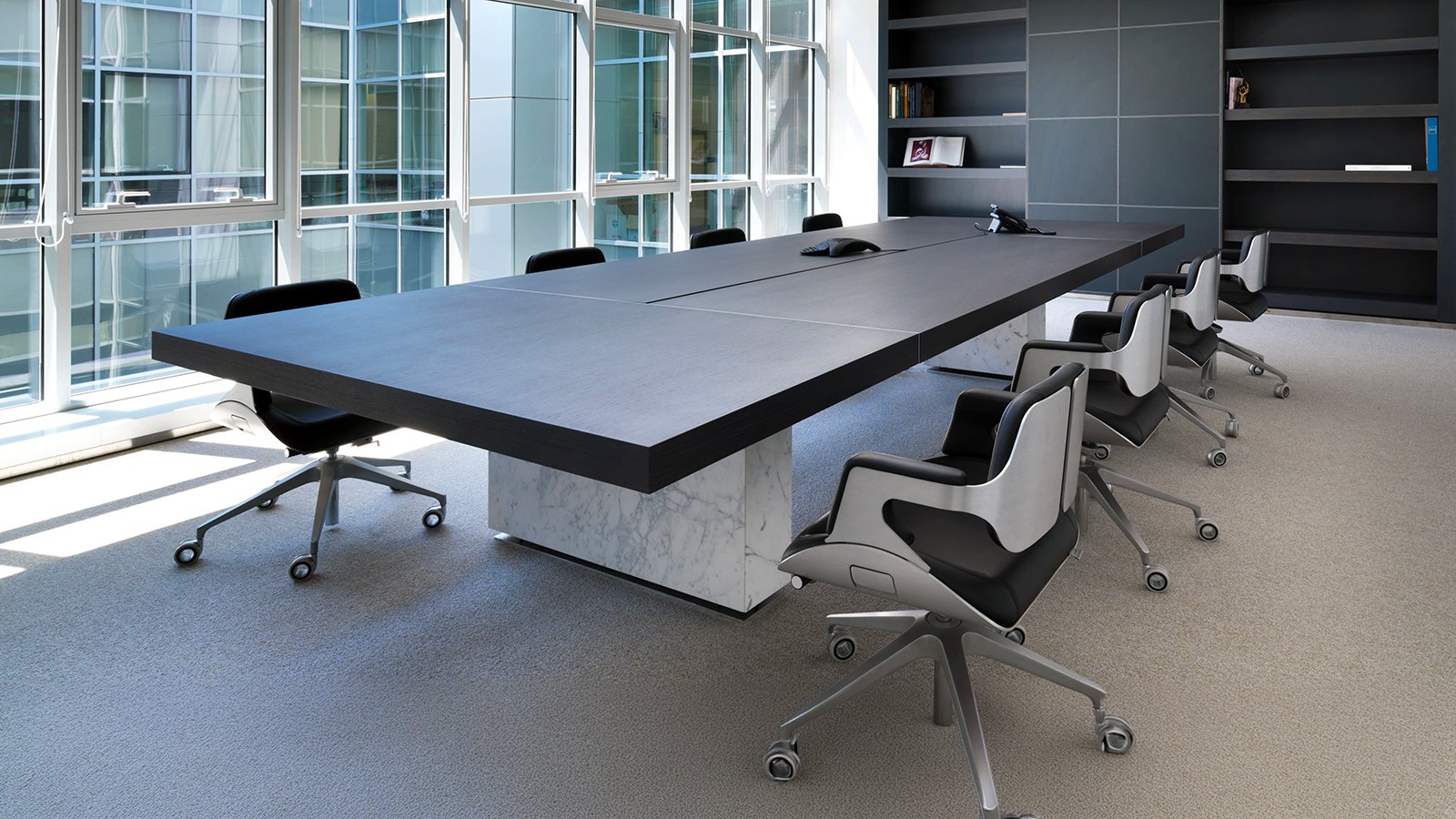

Rectangular tables: 380 × 160, 450 × 180 and 550 × 200 cm; height 75 cm in the high version or 67 cm in the low one; asymmetric 7.5 cm top cantilevered over two bases of different length and width; distance between the bases 225.6, 263.1 and 341.6 cm; arranged for electrification

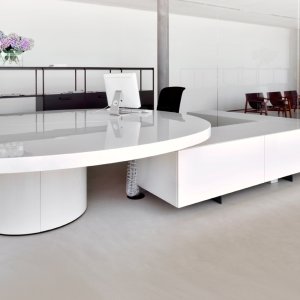

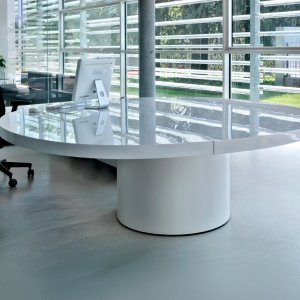

Oval tables: Ø230 cm, 67 or 75 cm high, and Ø300 cm, 67 or 75 cm high and arranged for electrification; top on a cylindrical base set towards the edge; fixed to the floor with the 8 supplied SLM 10 × 60 bolts (R250 reinforced concrete, maximum depth 8 cm) or with the 1AS1521/1AS1531 stabilizer ordered separately, a set of shaped plates totalling 110 kg; the weight rests on the base area, about 1 m², to be checked against the slab's load-bearing capacity
Round tables: Ø160 and Ø180 cm, 75 cm high, central base and single top, without metal frame or electrification
Electrification: openable top giving access to the pre-fitted Bticino Interlink Office boxes; Light Tech, Living International and Light accessories ordered separately; cables exit along the slot between the top sections and rise inside the base; cable passage areas 8 × 68.9, 8 × 87.9 and 8 × 107.9 cm plus 14 × 48, 14 × 48 and 18 × 76.5 cm on the three rectangular sizes
Tops: matt (LO) or gloss (LL) lacquer in 14 colours — White, Black, Chalk, Clay, Powder, Terracotta, Red, Yellow, Green, Blue, Burgundy, Swamp, Forest, Sea blue; wood in light, medium, dark, white, grey and black oak, Canaletto walnut, bamboo, curly eucalyptus and zebrano; the top sections are marked by an aluminium joint
Bases: matt or gloss lacquer in the same 14 colours, freely combined with the top; Tecno also declares marble bases in its catalogue
Leather pad: 70 × 50 × 7 cm for the rectangular tables; maximum number per size shown on the plan drawing
Net weights: 380, 450 and 581 kg for the high rectangular tables, 370, 440 and 560 kg for the low ones; 290/300 kg for the Ø230 oval; 530/540 kg for the Ø300 oval; 169 and 189 kg for the round tables
Packaging: 3.9, 4.2 and 4.6 m³ for the rectangular tables; 1.9-2 m³ for the Ø230 oval; 3.8-3.9 m³ for the Ø300 oval; 1.3-1.4 m³ for the round tables

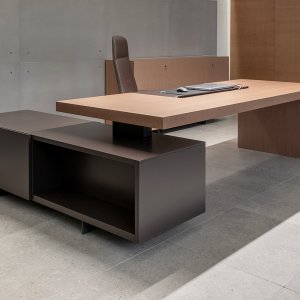

Asymmetrical family: executive desks of 242 × 135, 272 × 200 and 307 × 200 cm with right- or left-hand side cabinet and leather pad; Solenoids side tables Ø42 cm, 58 cm high, and 60 × 42 cm, 48 cm high, with back-painted low-iron tempered glass top in white or black and structure painted in the same colour
References declared by Tecno: Axa, Madrid; a pharmaceutical company, Rome
Warranty: 24 months on furniture, declared by Tecno
Company certifications: ISO 9001, ISO 14001, ISO 45001 held by Tecno; FSC licence FSC-C171395
