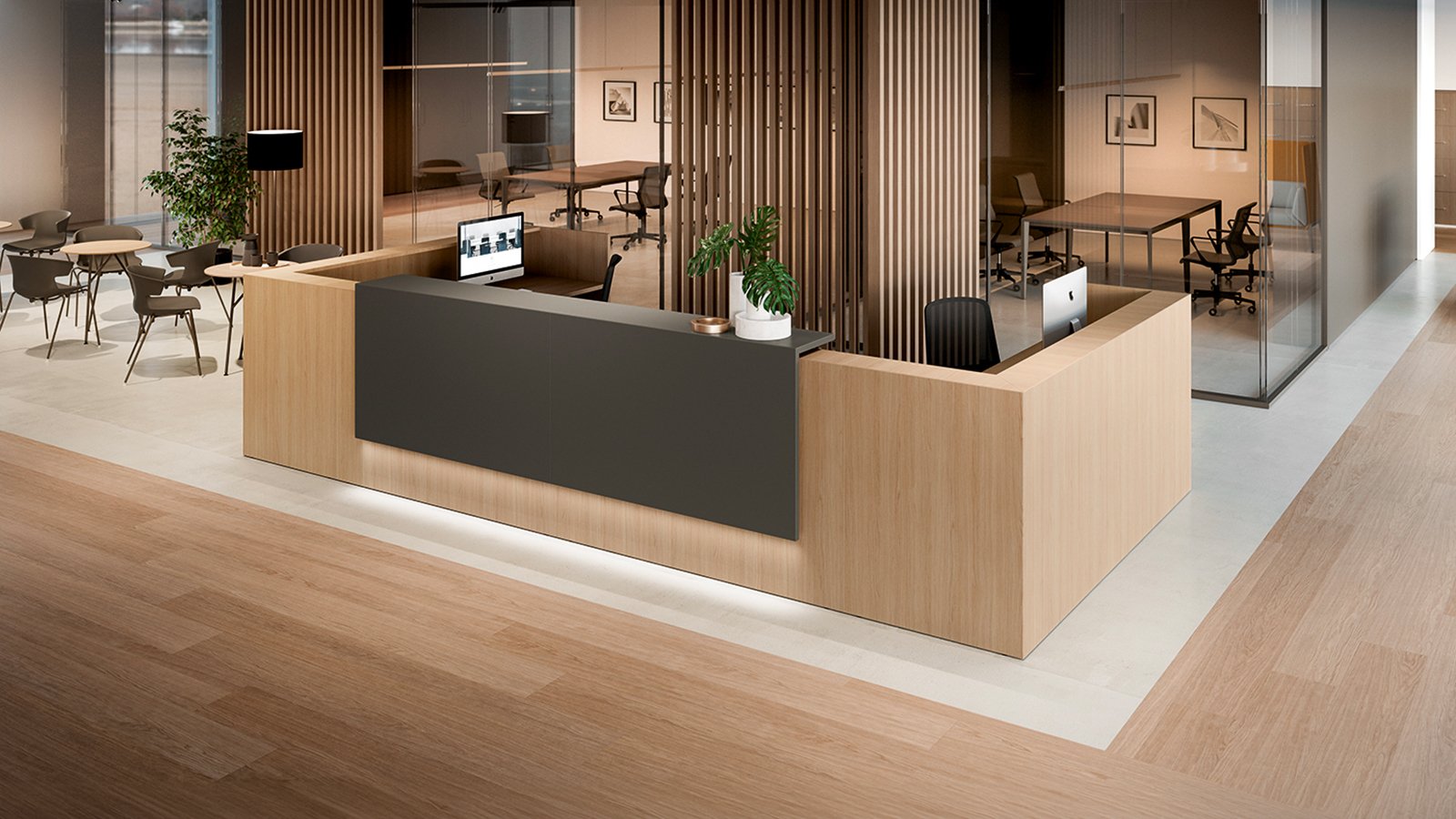

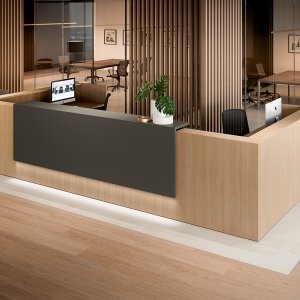

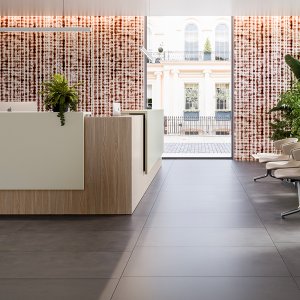

Z2 modular reception counter by Quadrifoglio in a corporate atrium

One reception system from 126 to 492 cm — Z2

Quadrifoglio
z2
z2 Most chosen configuration
₹ 496.920

Let's discuss your project

Bespoke: size, colour, finish

Specifying reception desks across sites usually means specifying different products — a small one for the branch office, a long one for headquarters. Z2 removes that fork: the same four module widths, 100 to 160 cm, build eight catalogue compositions from 126 to 492 cm, every one of them 113 cm tall. The desk at the regional office and the counter in the head-office atrium are grammatically the same object.

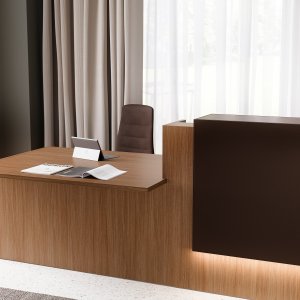

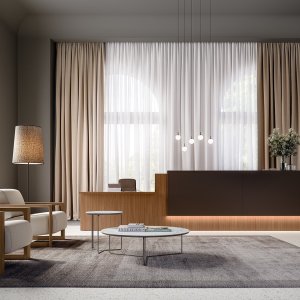

That consistency is structural, not cosmetic: identical panels with 2 mm ABS edges, identical 45-degree joints and 90-degree fittings, identical steel legs. Finishes — seven melamines, twenty-five lacquers, the leather-faced shelf — carry across every size, and the lowered accessible module slots into any run. Corner modules take the system around pillars and into L-shaped halls.

The maker lists schools, hotels, shops and transit areas among Z2's declared settings, which is precisely where long counters earn their keep. La Mercanti coordinates multi-site deliveries from Italy so that every location receives the same object, in the same finish, regardless of its length.

Technical information based on data declared by the manufacturer.

Design: R&D Department, Quadrifoglio Group
Type: modular reception counter system — linear modules, corner modules and a lowered accessible module

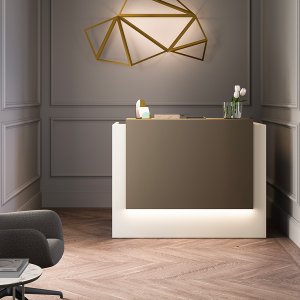

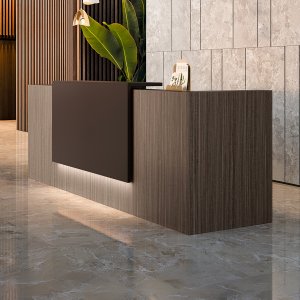

Compositions: eight catalogue configurations, from L 126 to L 492 cm; H 113 cm
Modules: widths 100/120/140/160 cm; optional welcome shelf
Structure: wood-based panels 25/30 mm, density 670/730 kg/m³, impact-resistant 2 mm ABS edges; 45° mitred joints with 90° fittings
Worktops: 30 mm, scratch-resistant washable melamine

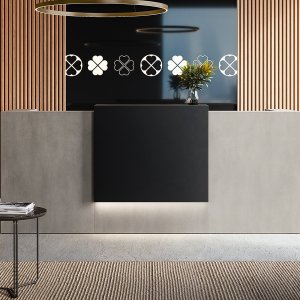

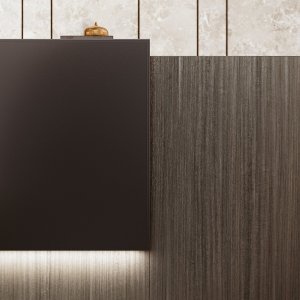

Welcome shelf: melamine, matt lacquer or regenerated leather wrapped in a single piece, with a perimeter stitch

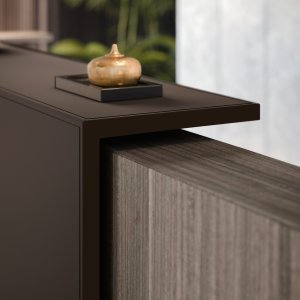

Finishes: 7 melamines, 25 lacquers plus the full RAL range, leather facing; metal structures in white or silver

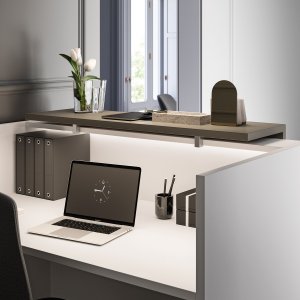

Legs: 50×50 mm steel tube, 1.5 mm gauge, 3 mm folded-sheet brackets, epoxy powder coating
Lighting: 240 LED/m strip (19.2 W/m), can be cut or bent; 21 W worktop lamp with opal polycarbonate screen and soft-touch switch; 24 W driver, 2 m cable
Cable management: Ø 60 mm grommet, flip-top tray, cable duct, opal spine
Feet: levelling feet, 0–12 mm and 0–15 mm travel
Tests passed: EN 15372; EN 1730 (loads, top impact, drop, stability); surfaces UNI EN 15185, UNI EN 15186, EN 12720; lighting EN 60598, EN 55015, EN 61547, IEC 62471
Materials: panels in 100 % recycled wood, low formaldehyde emission (CATAS Quality Award CARB); resins free of SVHC substances; wood, plastic and metal recyclable after use
Company: ISO 9001, ISO 14001, ISO 45001; FSC; Pannello Ecologico

La Mercanti Srl — trusted supplier for design and contract projects since 1997.
San Benedetto del Tronto (AP), Italy · +39 0735 753833 · info@lamercanti.com
Supply, quotations, specifications and project support across India and worldwide.

Documents and Catalogues

Quadrifoglio Executive Office Catalogue Quadrifoglio Office Partition Walls Catalogue Desking & Meeting Catalogue Reception Systems Catalogue Quadrifoglio Finishes & Materials

Share the finishes you wish to evaluate

₹ 30.000

Amount adjusted against your first order

FAQ

What actually holds the worktops up — the modules or the legs?
Both, by declared design: structural modules carry the load, with intermediate steel legs in 50×50 mm tube and 3 mm folded-sheet brackets supporting the tops. Longer runs can also use intermediate side panels instead of legs.
How many power supplies does a lit composition need?
One declared 24 W driver feeds one shelf module complete with its LED strip and worktop lamp, through a 2 m cable. Count one driver per lit module when budgeting the electrical works.
Will the worktop survive years of visitor badges and parcels?
The tops are 30 mm melamine declared scratch-resistant and washable, and the surface passed the declared abrasion, scratch and cold-liquid tests. It is a working surface by specification, not just by promise.
Is Z2 limited to office lobbies?
No — the manufacturer's declared settings include hotels, schools and campuses, shops, bars and transit areas. The module logic is the same; only the composition length and finishes change.
Can the welcome shelf be retrofitted on an existing composition?
Yes, the shelf is a declared optional part mounted on dedicated brackets, so a counter ordered without it can gain it later without replacing modules.

How to install a Z2 counter and get it level

A modular counter is only as good as its first hour on site. Five steps from crates to a counter that sits true.

Clear the footprint first
Mark the full composition on the floor — including the corner modules and the accessible section — before opening a single crate, so every module lands where it will live.
Build from a closing side
Start from the left or right closing side panel and add modules in sequence, pulling the 45-degree joints together with their 90-degree fittings as you go.
Level before you tighten
Use the levelling feet — up to 12 mm of travel under legs, 15 mm under modules — to bring the run true across the slab, then do the final tightening on the fittings.
Fit tops and brackets last
Seat the 30 mm worktops on their folded-sheet brackets only after the base line is level; a top fitted early locks errors in.
Route power before the first guest
Feed the LED drivers, drop the cables through the grommets and close the flip-top tray, so opening day starts with a clean counter and nothing taped to the floor.
