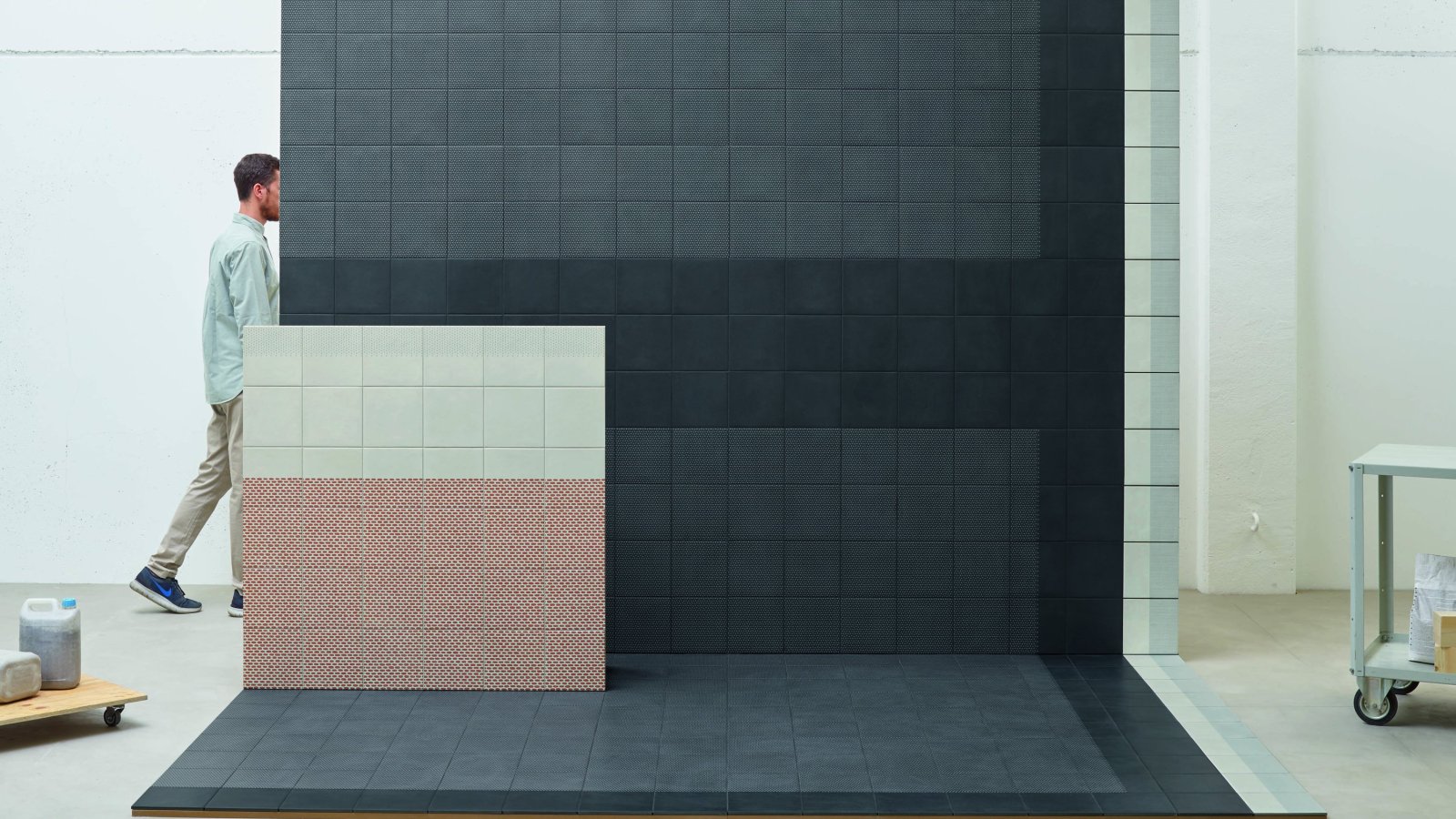

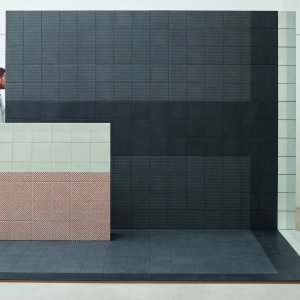

Tape by Mutina with mixed graphic patterns laid in glazed porcelain stoneware

Tape by Mutina: five moods on one order sheet, by Raw Edges

Mutina

Raw Edges

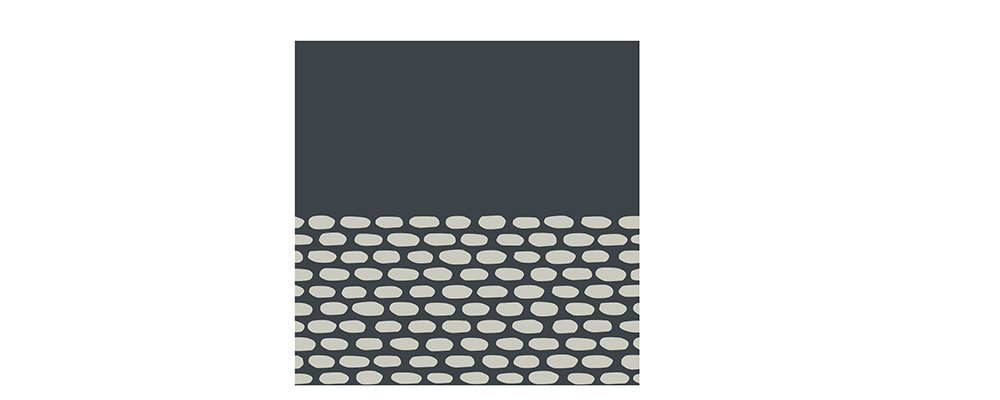

Cobble Half Black
Cobble Half Black Available now
₹ 51.817

Let's discuss your project

Trade terms for professionals and design studios

A reception that welcomes, a meeting room that focuses, a break corner that relaxes, a cabin that signals rank, a terrace that breathes: most fit-outs buy four or five different floors to get there. Tape does it on one order sheet. The glazed porcelain stoneware collection Raw Edges designed for Mutina in 2017 packs two bases, eight graphic patterns, eight half patterns and five shades into a single 20.5×20.5 cm format.

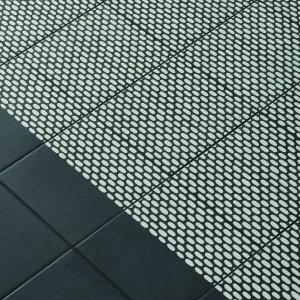

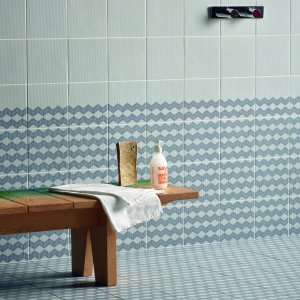

The mechanism is the half pattern: each motif — Mesh, Cobble, Grainy, Zigzag — has a half version that fades it into the base, so the floor changes mood between areas without breaking continuity. Beneath the graphics runs a faint chalky ground; above, five glazing textures mixed at random keep large stretches alive. Patterns arrive perfectly centered, ready for a 2 mm joint.

One specification serves every zone: stain class 5 for the coffee runs, breaking strength declared at 1300 N minimum, 0.06% absorption and frost resistance for the terrace, R10 with DCOF 0.69 on the slip side, Robinson-rated for heavy use. The design itself is registered — no. 004427748-0001/0027, filed in 2017 — which keeps the drawing as protected as the budget. Technical sheet, VOC class A+ and LEED declarations download from this page.

Technical information based on data declared by the manufacturer.

Collection: Tape
Manufacturer: Mutina
Design: Raw Edges (Yael Mer and Shay Alkalay), 2017 — registered design no. 004427748-0001/0027 (31/10/2017)
Material: glazed porcelain stoneware — UNI EN 14411 App G (BIa) GL
Size: 20.5×20.5 cm (8"×8") — non-rectified, perfectly centered patterns
Thickness: 10 mm

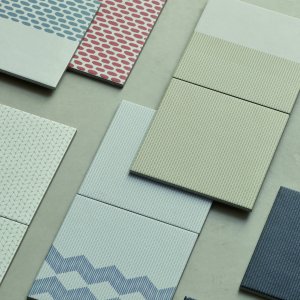

System: 2 bases (White, Black) — 8 patterns + 8 half patterns (Mesh, Cobble, Grainy, Zigzag) — 5 colour combinations (white, blue, green, brown, black) — 5 glazing textures mixed at random — V2 shade variation
Use: floor and wall — indoor and outdoor
Declared values: water absorption 0.06% (ISO 10545/3) — breaking strength min 1300 N — resistant to frost, thermal shock and chemicals — stain class 5 — R10 (DIN 51130) — DCOF 0.69 — Pendulum 27, P2 (AS/NZS 4586) — Robinson test: heavy use
Sustainability: LEED 4.1 declaration — 20% pre-consumer recycled content, all colours — VOC emission class A+ — HPD available
Installation: 2 mm joint with spacer wedges — porcelain adhesive — cement-based or epoxy grout; catalogue pairings Nero 06 (Base Black) and Calce 01 (White bases) — blend from several boxes
Packing: 16 pieces per box (0.67 sqm) — 23.88 pieces per sqm — 96 boxes per pallet (64.32 sqm)
Documentation: technical sheet, VOC, LEED and HPD downloadable; EPD, SDS and BPD3 on request

La Mercanti Srl — trusted supplier for design and contract projects since 1997.
San Benedetto del Tronto (AP), Italy · +39 0735 753833 · info@lamercanti.com
Supply, quotations, specifications and project support across India and worldwide.

Documents and Catalogues

Tape Catalogue Mutina Catalogue Tape LEED® Credit Contribution Sheet Tape Technical Guide, Laying & Maintenance

Share the finishes you wish to evaluate

₹ 30.000

Amount adjusted against your first order

FAQ

Can a single Tape order cover indoor and outdoor areas?
Yes — that is the point of the system. The same 20.5×20.5 cm format is declared for floor and wall, indoor and outdoor, with 0.06% absorption and frost resistance, so reception, cabins and terrace travel on one order sheet.
How many patterns does the Tape system include?
Eight full patterns and eight half patterns across four graphic families — Mesh, Cobble, Grainy, Zigzag — on two bases and five shades: enough combinations to give every zone its own mood without changing collection.
Will Tape stand up to heavy office footfall?
The Robinson test rates it for heavy use, stain resistance is class 5 and breaking strength is declared at minimum 1300 N. Slip data is published too: R10, DCOF 0.69, Pendulum 27 (P2).
What is special about Tape's glazing?
Five different glazed surface textures are mixed at random through production, over a faint chalky ground. Large floors keep a quiet vibration instead of the flat repeat of a printed series.
Is the Tape design protected against copies?
Yes: the collection is a registered design, no. 004427748-0001/0027 filed on 31/10/2017. What goes into the specification is the original drawing by Raw Edges, not a lookalike.

Five moods, one order: planning Tape across a fit-out

How to give reception, meetings, break, cabins and terrace their own character with one glazed stoneware collection - and one supplier list.

List the moods before the materials
Walk the plan and name what each zone should feel like: welcome, focus, pause, rank, air. Five moods maximum - that is exactly how many colour routes Tape carries.
Map patterns to zones
Assign Mesh, Cobble, Grainy or Zigzag to each function, on Base White for daylight areas or Base Black for the darker register. The format never changes, so the plan stays one surface.
Fade the boundaries
Between two zones, specify the half pattern of the leaving motif for one or two courses. The mood changes, the floor does not break - no trims, no thresholds, no separate flooring package.
Fix the technical line once
One line covers the whole project: 2 mm joint with wedges, porcelain adhesive, cement-based or epoxy grout - Nero 06 on Base Black, Calce 01 on White bases. Repeat it per zone and the spec is done.
Order zone-wise, blend box-wise
Quantify at 23.88 pieces per square metre, 16 per box, and draw from several boxes in each zone while laying. The V2 variation and the five random glazes even out across the floor. Finish samples can be ordered with the cost fully credited at order confirmation.
