On the DVO page for Qubo, below the specifications, the manufacturer lists what it expects to stand next to the counter: Contenitori Universali DV503 storage units, E-Media DV401, Screens DV300, Single Glass DV602 and the Rym DV905 desk. Inside an Indian corporate lobby, that is a working note. The back office behind the counter, the screens that shield the operator, the glass that separates the waiting area come from the same catalogue as the desk, with the same finish cards and the same delivery.

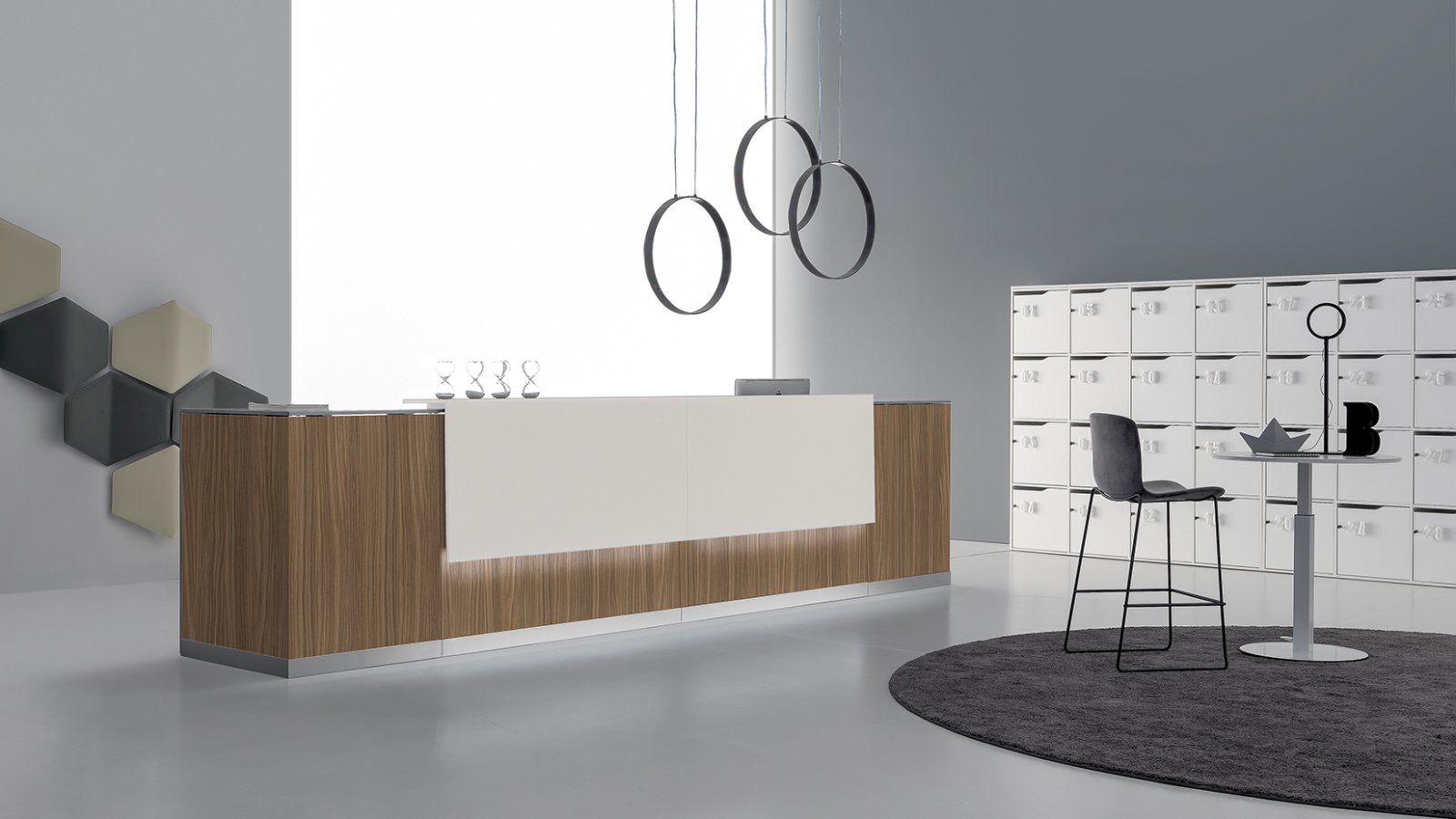

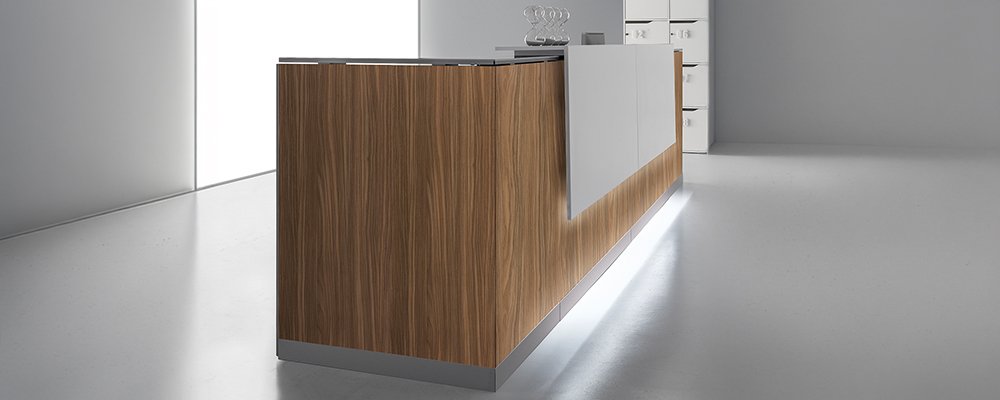

The counter itself is a modular system of reception desks designed by Antonio Morello: straight modules in six widths from 86 to 206 cm, 84 cm deep and 112.5 cm high, a two-way 90° corner and right- or left-hand end modules, six pre-set compositions with a single order code, and an accessible module at 74 cm with a 115 cm deep top for a seated visitor. Worktops are 25 mm melamine with a 2 mm ABS edge, vertical panels 25 mm; eleven melamine finishes plus a gloss white laminate for the counter top. The welcome top, the anodised aluminium plinth and the LED bar with touch dimmer are options. DVO states an 8-year warranty and declares CAM/GPP, GREENGUARD UL 2818, CARB Phase 2, FSC C109826 and UNI EN 15372:2023 on the product sheet.
La Mercanti quotes Qubo together with the DV503 storage behind it as one consignment for India, with the counter composition and the back-office run on the same drawing. Offices, hotels and reception areas use the same series; what changes is the number of modules in the row.
Technical information based on data declared by the manufacturer.
Model: Qubo, DVO Office (code DV703) — design Antonio Morello, 2012.
Type: modular reception desk system with vertical and horizontal elements, worktops and integrated accessories.
Versions in the price list: straight module in six widths; two-way 90° corner module (not usable as an end); right- or left-hand 90° end module; module with conversation top (accessible) with dedicated side panels; pre-set compositions 1 to 6; welcome top, plinth, LED bar, cable management and multipurpose box as options. Uses stated by DVO: offices, hotels and reception areas.
Straight modules: W 86 / 106 / 126 / 146 / 166 / 206 cm × D 84 cm × H 112.5 cm; the 206 cm module is not available in walnut or dark oak.
Corner modules: 90° corner W 84 cm; 90° end module W 84 × D 85 cm, right or left; back panel for corner 84 × 84 cm.
Accessible module: W 100 / 140 cm × D 115 cm × H 74 cm, with dedicated end and upper side panels.
Pre-set compositions: six compositions under a single code; composition 3 is ordered right- or left-hand, composition 5 is interchangeable and reaches 487 cm overall.
Tops and panels: worktop in 25 mm melamine with 2 mm ABS edge, optional cable ports; vertical panels in 25 mm melamine with 1.5 mm ABS edge; back panel W 86-206 × H 110 cm, 2.5 cm thick; end panel 2.5 cm thick.
Counter top: 18 mm melamine with 1.5 mm ABS edge, 28 cm deep; gloss white laminate version with two-colour white/aluminium PMMA edge 1.5 mm. Optional welcome top W 120 / 140 / 160 × D 32.5 × H 74 cm.
Structure: square-section 50 × 50 mm metal column and middle leg, H 71.5 cm, in white RAL 9016, aluminium RAL 9006 or anthracite RAL 7016; optional L-section anodised aluminium plinth, H 8 cm; levelling feet +10 mm.

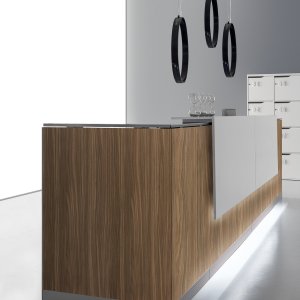

Lighting: 55 cm LED bar under the top with touch on-off-dimmer on one side and 1.9 m cable to the power supply; LED bar for the welcome top 120 / 140 / 160 cm with power supply included; 15 W power supply kit, 100-240 V input, with switch.
Cable management: folded sheet-steel cable duct for each module, pair of ducts for the corner module, multipurpose box 35 × 24 × 35 cm; cable ports in the worktop on request.
Related products listed by DVO: Rym DV905, Contenitori Universali DV503, E-Media DV401, Screens DV300, Single Glass DV602.
Finishes: M1 white, light grey, light oak, natural oak, walnut, dark oak; M2 soft touch matt white, taupe, graphite, matt green, matt black; L gloss white laminate for the counter top; welcome top also in umber; metal in white, aluminium or anthracite.
Certifications stated by DVO on the product sheet: CAM/GPP, GREENGUARD UL 2818, CARB Phase 2, FSC C109826, UNI EN 15372:2023.
Warranty: 8 years, as stated by DVO.
Planning: available in the pCon.planner configurator.
Manufacturer: DVO Office, Roveredo in Piano (Pordenone), Italy.
La Mercanti Srl — trusted supplier for design and contract projects since 1997.
San Benedetto del Tronto (AP), Italy · +39 0735 753833 · info@lamercanti.com
Supply, quotations, specifications and project support across India and worldwide.
Documents and Catalogues
Share the finishes you wish to evaluate
FAQ
What is the standard height of a Qubo counter?
Straight, corner and end modules of Qubo are 112.5 cm high and 84 cm deep. The only lower element is the module with conversation top, 74 cm high and 115 cm deep, made for a seated visitor and supplied with its own end and upper side panels.
How are the Qubo modules joined?
Two straight modules meet on a square-section 50 × 50 mm metal column, 71.5 cm high, in white, aluminium or anthracite. Corners use the two-way 90° module, 84 cm wide; a run is closed by a 2.5 cm end panel or by the right- or left-hand 90° end module.
Which finishes can be combined on Qubo?
Panels, worktops and counter tops each take their own card: six M1 melamines (white, light grey, light oak, natural oak, walnut, dark oak), five M2 soft-touch finishes (matt white, taupe, graphite, matt green, matt black) and a gloss white laminate for the counter top. The 206 cm module is not offered in walnut or dark oak.
Is there a plinth for Qubo?
Yes, as an option: an L-section anodised aluminium plinth 8 cm high, in lengths matching each straight module, and a square 84 × 84 cm version for the corner and end modules. Levelling feet with 10 mm of adjustment are part of the system.
What certifications does DVO declare for Qubo?
On the product sheet DVO lists CAM/GPP, GREENGUARD UL 2818, CARB Phase 2, FSC C109826 and UNI EN 15372:2023, together with an 8-year warranty. La Mercanti supplies the corresponding documents with the order.
How to choose between a pre-set Qubo composition and single modules
Qubo by DVO Office can be ordered as one of six numbered compositions or module by module: how to decide which route fits an Indian lobby before La Mercanti prepares the quotation.
Measure the wall and the entrance
Note the length available for the Qubo run and where the door is; a pre-set composition only works if the plan has room for its full footprint.
Compare the six Qubo compositions
Read the six compositions: 1 is a single straight module, 3 is specified right or left, 5 is a U-shape with interchangeable sides up to 487 cm.
Count the operator positions
Each Qubo straight module carries one worktop; if two people work side by side, the composition must have two modules of at least 126 cm.
Add what the compositions leave out
Welcome top, LED bar, plinth and cable ducts are options on any Qubo composition; list them separately so nothing is assumed.
Send the choice to La Mercanti
Return the composition number or the module list with the plan; La Mercanti checks the Qubo codes and prepares the quotation on the same drawing.
