Fil Rouge
₹ 393.600

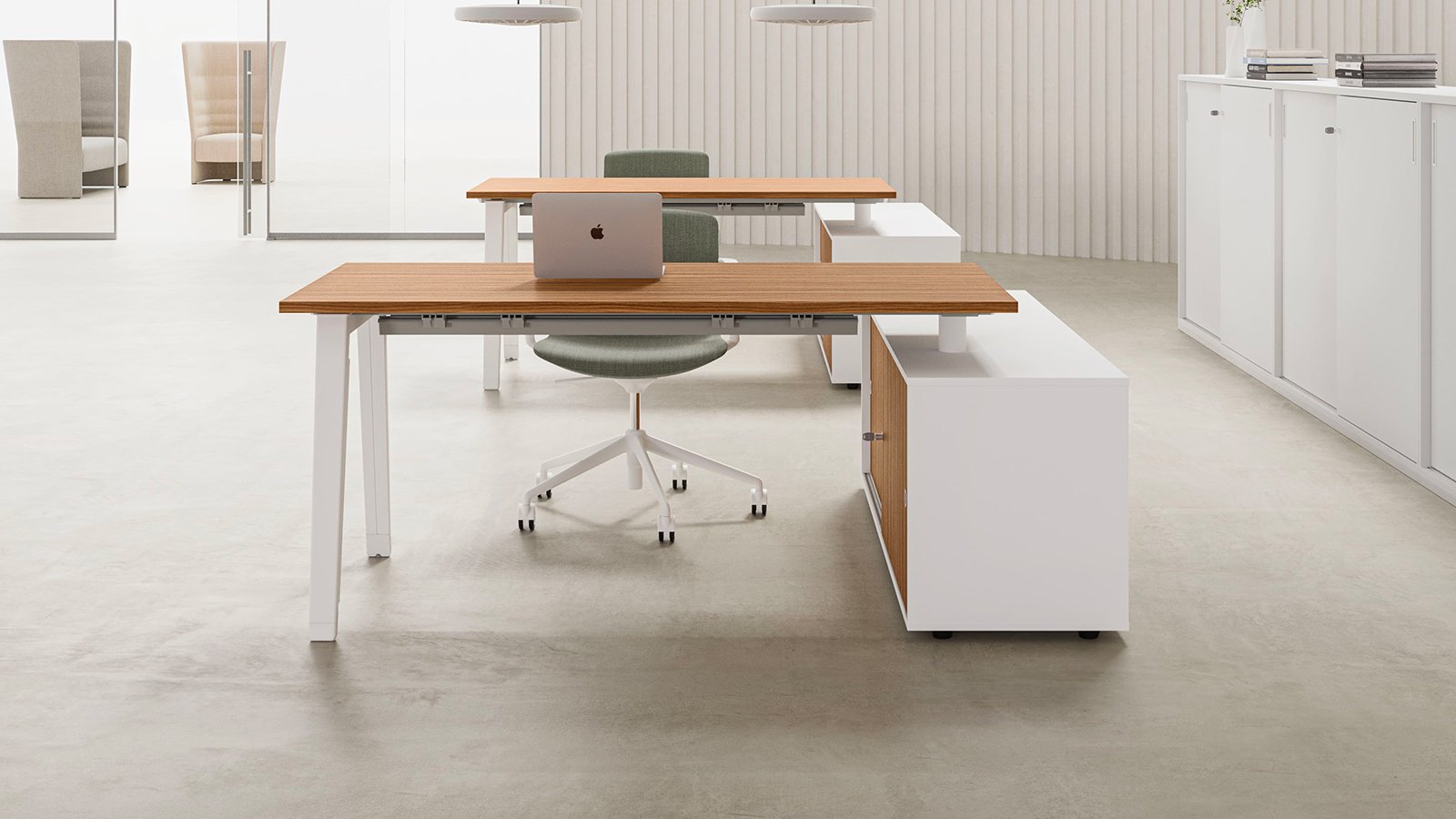

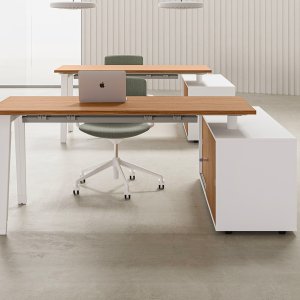

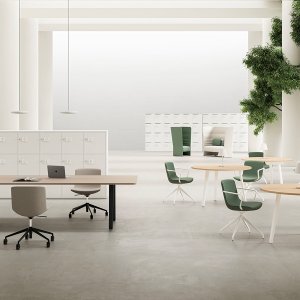

An office in Bengaluru or Gurugram rarely stays the size it was on opening day. DVO Office writes E-Place with that in mind: beside every desk and bench size the price list carries a second code, «in-line connectable», for the unit that joins the next one in a row. Buy the first desk as a single, buy the following ones in-line, and the row extends by one seat at a time, sharing the line without a rebuild of what is already there.
Designed by Gianantonio Perin and Giorgio Topan, the family rests on a single trestle leg in epoxy-coated steel, with a 60 × 40 mm crossbar and two uprights pressed from sheet steel. On it sit office workstations from 80 to 200 cm wide at 74 cm high, with a 25 mm melamine top and 2 mm ABS edge; bench desking in three depths, one with a central aluminium cable rail; a return, alone or on a supporting pedestal with lock; a low service unit the desk can hang from; a 90° curved link; and meeting tables, rectangular, square or round, with radiused corners. Declared certifications include GREENGUARD, FSC, LEED credits, WELL v2 and FEMB Level 3.
La Mercanti lays out the E-Place rows for the seats you have today and marks in the drawing the in-line codes for the seats you expect to add, so that the second purchase order is written before the first one ships and the import paperwork for India is prepared once, with the forwarder, for both.
Technical information based on data declared by the manufacturer.
Collection: E-Place, DVO Office — design Gianantonio Perin and Giorgio Topan.
Versions in the price list: single desk; in-line connectable desk; return; return with supporting pedestal (4 drawers, or 2 drawers and filing drawer, with lock); bench with facing tops; bench with central rail and two aluminium flip doors; in-line connectable bench; desk and bench integrable with the service unit; 90° two-way curved link; end top with brackets for bench; rectangular, square and round meeting tables; round and square table on freestanding leg.
Desk: W 80 / 100 / 140 / 160 / 180 cm × D 65 cm; W 140 / 160 / 180 / 200 cm × D 80 cm; H 74 cm. Return W 80 / 100 cm × D 65 cm; return with supporting pedestal W 100 / 120 cm × D 65 cm.

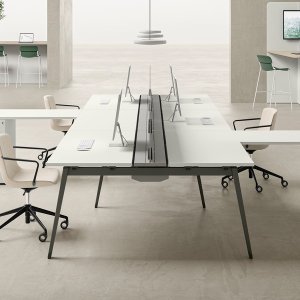

Bench: W 140 / 160 / 180 cm × D 136.5 or 166.5 cm; with central rail D 158 cm; end top with R 45 mm corners, D 40 cm.

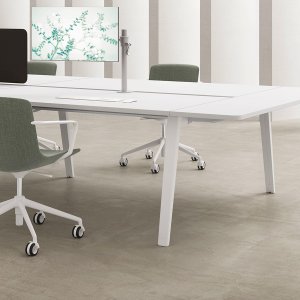

Meeting tables: rectangular 240 / 300 × 120 cm with R 45 mm corners, on two columns with 55 cm square base or on trestle legs; square 140 × 140 cm; round Ø 100 / 120 cm on column with 55 cm base or on trestles; round Ø 60 cm and square 100 × 100 cm in MDF on freestanding leg; H 74 cm.
Top: melamine, 25 mm thick, with 2 mm ABS edges; optional rectangular or round cable ports.
Structure: trestle legs in epoxy powder-coated steel: horizontal rectangular tube 60 × 40 mm, 1.5 mm thick, and two vertical uprights in 1.5 mm pressed sheet steel with variable section; beams in trapezoidal-section steel tube, 2 mm thick, with moulded ABS end caps; polyethylene levelling feet, 0-15 mm adjustment.

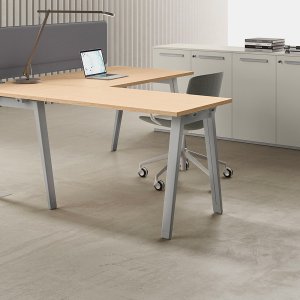

Modesty panel: 18 mm melamine, trapezoidal shape, H 38 cm, W 110 cm for desks of 140-160 and W 140 cm for desks of 180-200, left or right.

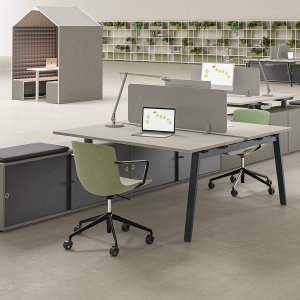

Cable management: single or double cable tray under the top, extruded PVC duct 65 / 85 / 110 cm, vertical leg duct 10 × 6 × 74 cm in the leg colour, central bench rail in anodised aluminium with two flip doors, CPU holder with straps.

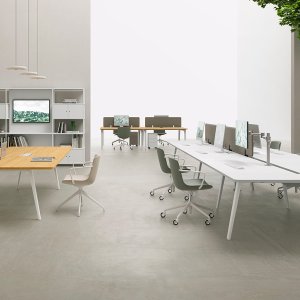

Storage and accessories: service unit 160 × 48 × 58 cm with two sliding doors, lock and two shelves (optional drawer, cushion in Trevira CS Jet Bioactive fabric 77 × 45 × 3.5 cm, colours Pepe, Sesamo, Timo, Liquirizia); hanging metal drawer 32.5 × 52 × 7 cm with lock; hanging two-drawer pedestal 33 × 54 × 35 cm; optional 18 mm metal plinth for the supporting pedestal.
Finishes: melamine tops in white, light grey, light oak, natural oak, walnut, umber, matt black soft touch; beams in aluminium RAL 9006; legs in white RAL 9016, aluminium RAL 9006, anthracite RAL 7016 or brick red RAL 8004, sage green RAL 6013, powder blue Pantone 7542; ABS caps in white, grey or anthracite; handles Q, V or T.
Certifications declared on the E-Place sheet: GREENGUARD, CARB Phase 2, FSC, LEED (contributes to credits EAP2, EAC2, MRC3, MRC5, EQC2, EQC4, ID1), WELL Building Standard v2, FEMB Level 3, UNI EN 527-1 and 527-2, Italian D.Lgs. 81/08, CAM. Documents can be downloaded from the article page.
Warranty: 8 years, as stated by DVO.
Planning: collection available in the pCon.planner configurator.
Manufacturer: DVO Office, Roveredo in Piano (Pordenone), Italy.
La Mercanti Srl — trusted supplier for design and contract projects since 1997.
San Benedetto del Tronto (AP), Italy · +39 0735 753833 · info@lamercanti.com
Supply, quotations, specifications and project support across India and worldwide.
Documents and Catalogues
Share the finishes you wish to evaluate
FAQ
Is E-Place available in pCon.planner?
Yes, DVO publishes the collection in the pCon.planner configurator, the planning software many architecture practices already use: desks, benches, tables and storage can be placed on the floor plan with the real codes. La Mercanti can share the configured file or export it for offices that do not run the program.
What is special about the beams that connect the E-Place legs?
They are steel tubes with a trapezoidal section, 2 mm thick, closed at each end by a moulded ABS cap in white, grey or anthracite. The trapezoid gives the beam a slanted face that catches less dust than a flat box section, and the caps hide the cut ends where the beam meets the trestle.
What is the end top of an E-Place bench for?
It is a shallow top, 40 cm deep, fixed on brackets across the end of a bench row, with 45 mm radiused corners; it comes in the three bench depths of 136.5, 158 and 166.5 cm. It closes the row visually and gives a shared surface for a printer, plants or documents without adding a workstation.
Which storage comes with the E-Place service unit?

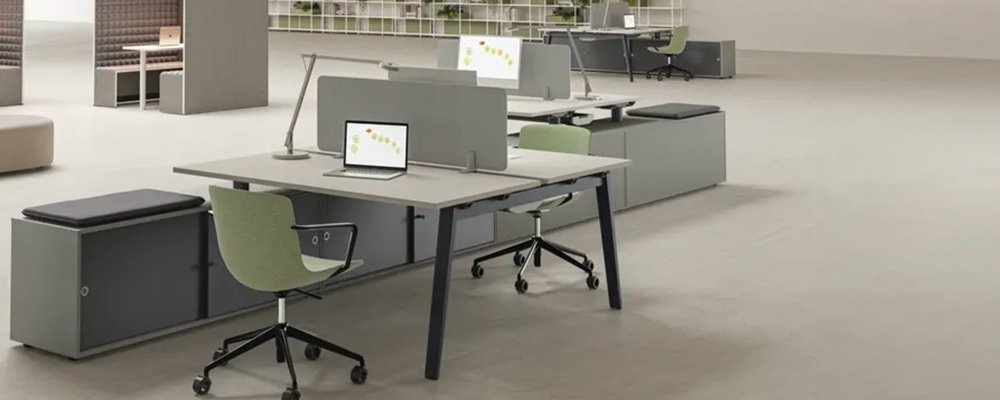

The unit is 160 cm wide, 48 deep and 58 high, with two sliding doors, a lock and two shelves inside; an internal drawer of 41.5 × 41 × 11.5 cm is optional. A desk or a bench can be integrated with it, so the unit doubles as the support on one side of the top.
How does the return with supporting pedestal differ from the plain return on E-Place?

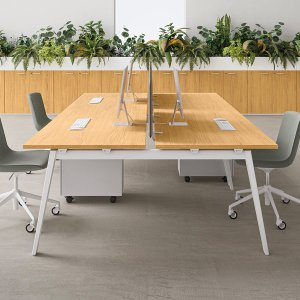

The plain return is a 65 cm deep top of 80 or 100 cm that rests on the trestle structure. The return with supporting pedestal is 100 or 120 cm wide and stands on a lockable pedestal with four drawers, or two drawers and a filing drawer; an 18 mm metal plinth is available as an option.
How to see E-Place before ordering for an Indian office
Nine desk sizes, three bench depths and thirteen finishes are difficult to judge on a screen: the way to put E-Place by DVO Office in front of the project team before the purchase order.
Ask La Mercanti where E-Place is displayed
La Mercanti lists the DVO showrooms and partner spaces where E-Place is currently on the floor and arranges the visit, in Italy or closer to the project.
Carry the seat count
Bring the number of workstations per row and the target growth: on site the difference between the 65 and 80 cm depths of E-Place is decided in a minute.
Test the bench with the rail
Sit at the 158 cm bench, open the flip doors of the central rail and check the Indian plugs and network connectors your IT team specifies.
Compare finishes under office light
Ask to see the E-Place tops next to the legs away from the spotlights; natural oak and umber shift with the light of a working floor.
Request the 3D configuration
When travel is not possible, La Mercanti sends the E-Place layout rendered from pCon.planner, so the team reviews the same configuration from the office.
